Nippon Oil Pump NOP

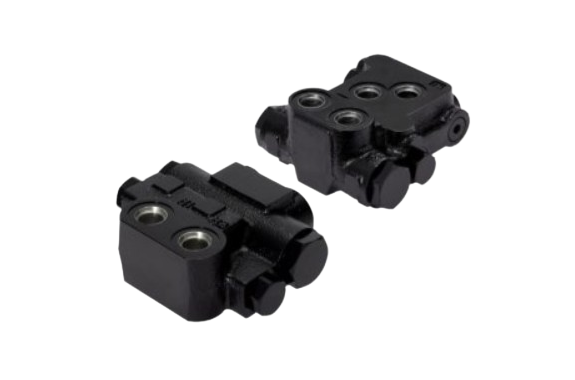

Nippon Oil Pump Orbmark Motor Counter Balance Brake Valve CBB
Manufacturer: Nippon Oil Pump Co., Ltd.
Model: CBB
Features
- Integrated valve system with counter balance and brake
- Hydraulic control valve, installed in Orbmark motor
- Works to give the back pressure to the return hydraulic circuit
- Works to protect hydraulic circuit against abnormal high pressure
Specifications
| Model | Rated flow rate Lℓ/min (US gal/min) | Rated pressure MPa (psi) | Switcing pressure MPa (psi) | Approx. weight kg (lbs) | Applicable oil | Allowable oil temperature ℃(°F) |
|---|---|---|---|---|---|---|
| O-CBB-04 | 58 (15.32) | 21.0 (3045.80) | 0.34 (49.31) | 4.0 (8.82) | ISO VG32 or same level | 10(50)～80 (176) |
