Nippon Oil Pump NOP

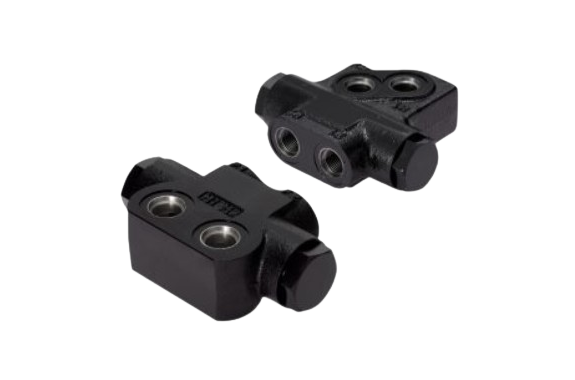

Nippon Oil Pump Orbmark Motor Counter Balance Valve CBV
Manufacturer: Nippon Oil Pump Co., Ltd.
Model: CBV
Features
- Control valve to give back pressure on hydraulic return circuit
- Hydraulic control valve installed on Orbmark motor
Specifications
| Model | Rated flow rate ℓ/min (US gal/min) | Rated pressure MPa(psi) | Switching pressure MPa(psi) | Approx. weight kg(lbs) | Applicable oil | Allowable oil temp. ℃(°F) |
|---|---|---|---|---|---|---|
| O-CBV-04 | 58 (15.32) | 21.0 (3045.80) | 0.34 (49.31) | 2.8 (6.17) | ISO VG32 or same level | 10(50)～80 (176) |
