Nippon Oil Pump NOP

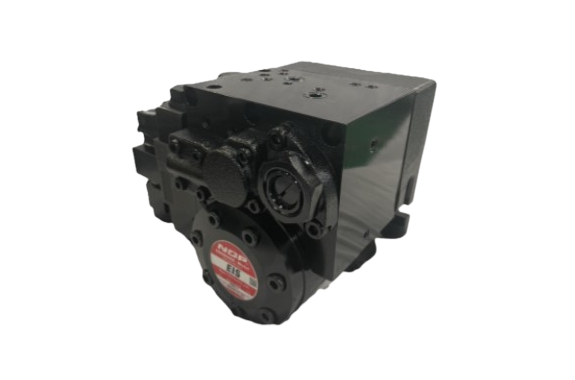

Nippon Oil Pump Orbmark Motor EIS Indexing Motor Series
Manufacturer: Nippon Oil Pump Co., Ltd.
Model: ORB-M
Features
- Standard type of hydraulic indexing motor
- Hydraulic motor for indexing
- High torque, high speed indexing and space-saving solution
- Smooth and shock-less indexng by built-in mechanical valve
- Index accuracy: ±0.1° on the output shaft
Specifications
- Rated pressure: 7.0MPa
- Rated flow rate: 20L/min
- Permissible back pressure: 0.98MPa
- Indexed number: 1, 2, 3
- Repeated indexing accuracy: within ±0.1°
- Solenoid valve voltage: AC100V 50/60Hz
- Permissible hydraulic oil: ISO VG32～56
- Recommended oil temperature: 0～50℃
| Product | EIS-07 | EIS-100 | EIS-120 | EIS-160 | EIS-170 | EIS-190 | EIS-240 | EIS-280 | EIS-380 | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Motor capacity/cm3/rev | 71 | 98 | 118 | 162 | 171 | 188 | 235 | 282 | 376 | ||||||||||||||||||
| Max. load(N・m2) | 10 | 20 | 30 | 45 | 50 | 60 | 75 | 95 | 135 | ||||||||||||||||||
| Indexed number(P/rev) | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 |
| Standard revolution(rpm) | 130 | 190 | 130 | 100 | 120 | 70 | 110 | 80 | 100 | 70 | 100 | 60 | 80 | 50 | 70 | 40 | 50 | 30 | |||||||||
| Required oil volume(ℓ/min) | 10 | 7 | 14 | 11 | 16 | 9 | 20 | 14 | 19 | 13 | 20 | 13 | 20 | 13 | 21 | 13 | 21 | 13 | |||||||||
