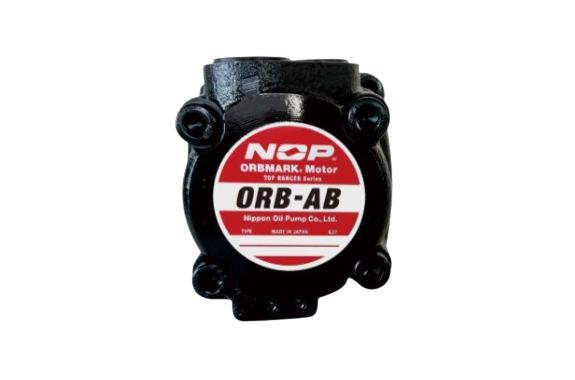

Nippon Oil Pump Orbmark Motor ORB-AB With Mechanical Brake
Manufacturer: Nippon Oil Pump Co., Ltd.
Model: ORB-AB
Features
- Hydraulic motor with mechanical brake for secure actuation
- Made in Japan quality
- Built-in mechanical brake which enables to realize secured actuation and stop
Specifications
| Size | Theoretical Displacement (cm3/rev) | Normal Continuous Revolution (rpm) | Normal Continuous Flow rate ℓ/min (US gal/min)) | Max. Instantaneous Flow rate ℓ/min (US gal/min) | Normal Continuous Torque (N・m) | Max. Instantaneous Torque (N・m) | Normal Continuous Pressure △P MPa(psi) | Max. Instantaneous Pressure △P MPa(psi) | Permissible Back Pressure MPa(psi) | Approx. Weight kg(lbs) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| B10/B20 | B30/B40 | ||||||||||
| 080 | 78 | 846 | 68 (14.96) | 68 (14.96) | 235 | 343 | 21.0 (3045.80) | 30.9 (4481.67) | 7 | 15.2 (33.51) | 16.2 (35.71) |
| 100 | 97 | 690 | 69 (15.18) | 87 (19.14) | 288 | 384 | 28.0 (4061.06) | 15.4 (33.95) | 16.4 (36.16) | ||
| 125 | 123 | 552 | 70(15.40) | 95 (20.90) | 365 | 476 | 15.6 (34.39) | 16.7 (36.82) | |||
| 160 | 158 | 460 | 75(16.50) | 449 | 588 | 16.0 (35.27) | 17.0 (37.48) | ||||
| 200 | 195 | 373 | 551 | 717 | 16.1 (35.49) | 17.1 (37.70) | |||||
| 250 | 244 | 298 | 680 | 821 | 26.0 (3770.99) | 16.8 (37.034 | 17.8 (39.24) | ||||
| 290 | 288 | 253 | 737 | 834 | 20.0 (2900.76) | 23.0 (3335.87) | 17.2 (37.91) | 18.3 (40.34) | |||
| 315 | 306 | 238 | 744 | 848 | 19.0 (2755.72) | 22.0 (3190.84) | 17.4 (38.36) | 18.4 (40.56) | |||
| 390 | 393 | 185 | 767 | 874 | 15.0 (2175.57) | 16.5 (2393.13) | 18.2 (40.12) | 19.2 (42.33) | |||
| 410 | 410 | 177 | 774 | 884 | 14.5 (2103.05) | 16.0 (2320.61) | 17.9 (39.46) | 19.0 (41.89) | |||
- 1： Do not drive motor with max. torque/max. pressure in more than 6 seconds.
- 2： Recommended hydraulic oil: ISO-VG32 or same class.
- 3： If φ25.4 shaft is used, it is highly recommended to use motor under condition that output torque is less than 280N・m.
- 4： Max. input pressure must be less than 30.9MPa (4481.67psi) and do not exceed max. output torque.
- 5： Max.permissible back pressure is 7MPa (1015.27psi), but in the case of operating with more than 1.8MPa(261.07psi), drain piping is required to protect oil sealing.
- 6： ΔP means differential pressure.
