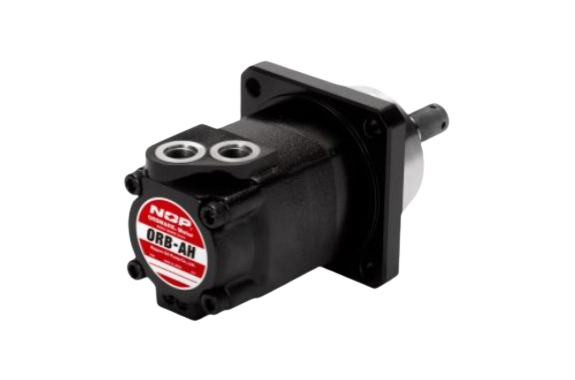

Nippon Oil Pump Orbmark Motor ORB-AH

Manufacturer: Nippon Oil Pump Co., Ltd.
Model: ORB-AH

Features

Size	Theoretical Displacement (cm3/rev)	Normal Continuous Revolution (rpm)	Normal Continuous Flow rate ℓ/min (US gal/min)	Max. Instantaneous Flow rate ℓ/min (US gal/min)	Normal Continuous Torque (N・m)	Max. Instantaneous Torque (N・m)	Normal Continuous Pressure △P MPa(psi)	Max. Instantaneous Pressure △P MPa(psi)	Permissible Back Pressure MPa (psi)	Approx. Weight kg (lbs)
Size	Theoretical Displacement (cm3/rev)	Normal Continuous Revolution (rpm)	Normal Continuous Flow rate ℓ/min (US gal/min)	Max. Instantaneous Flow rate ℓ/min (US gal/min)	Normal Continuous Torque (N・m)	Max. Instantaneous Torque (N・m)	Normal Continuous Pressure △P MPa(psi)	Max. Instantaneous Pressure △P MPa(psi)	Permissible Back Pressure MPa (psi)	B10/B20	B30/B40
080	78	846	68 (17.96)	68 (17.96)	235	343	21.0 (3045.80)	30.9 (4481.67)	7 (1015.27) *Note 5	15.2 (33.51)	16.2 (35.71)
100	97	690	69 (18.23)	87 (22.98)	288	384		28.0 (4061.06)		15.4 (33.95)	16.4 (36.16)
125	123	552	70 (18.49)	95 (25.10)	365	476				15.6 (34.39)	16.7 (36.82)
160	158	460	75 (19.81)		449	588				16.0 (35.27)	17.0 (37.48)
200	195	373			551	717				16.1 (35.49)	17.1 (37.70)
250	244	298			680	821		26.0 (3770.99)		16.8 (37.04)	17.8 (39.24)
290	288	253			737	834	20.0 (2900.76)	23.0 (3335.87)		17.2 (37.92)	18.3 (40.34)
315	306	238			744	848	19.0 (2755.72)	22.0 (3190.84)		17.4 (38.36)	18.4 (40.57)
390	393	185			767	874	15.0 (2175.57)	16.5 (2393.13)		18.2 (40.12)	19.2 (42.33)
410	410	177			774	884	14.5 (2103.05)	16.0 (2320.61)		17.9 (39.46)	19.0 (41.89)

1: Do not drive motor with max. torque/max. pressure in more than 6 seconds.
2: Recommended hydraulic oil: ISO-VG32 or same class.
3: If φ1″ shaft is used, it is highly recommended to use motor under condition that output torque is less than 280N・m. If actuating with more than 280N・m, it is highly recommended to use spline shaft or φ32 shaft.
4: Max. input pressure must be less than 30.9MPa (4481.67psi).
5: Max.permissible back pressure is 7MPa (1015.27psi), but in the case of operating with more than1.8MPa(261.07psi), drain piping is required to protect oil sealing.
6: ΔP means differential pressure.
