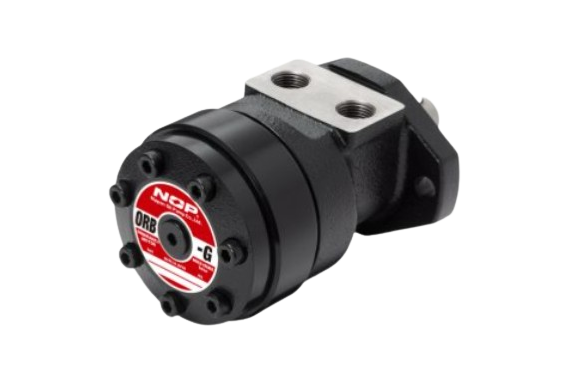

Nippon Oil Pump Orbmark Motor ORB-G

Manufacturer: Nippon Oil Pump Co., Ltd.
Model: ORB-G

Features

Size	Theoretical Displacement (cm3/rev)	Normal Continuous Revolution (rpm)	Normal Continuous Flow rate ℓ/min (US gal/min)	Max. Instantaneous Flow rate ℓ/min (US gal/min)	Normal Continuous Torque (N・m)	Max. Instantaneous Torque (N・m)	Normal Continuous Pressure △P MPa (psi)	Max. Instantaneous Pressure △P MPa (psi)	Permissible Back Pressure MPa (psi)	Approx. Weight kg (lbs)
050	54.0	1034	57 (15.06)	68 (17.96)	99	124	13.8 (2001.52)	17.2 ( 2494.65)	10.3 (1493.89)	6.1 (13.44)
070	71.4	790		76 (20.08)	131	164				6.2 (13.67)
100	98.5	588			180	223				6.4 (14.10)
120	118.4	478			221	275				6.6 (14.55)
130	129.0	438			231	300	13.1 (1900.00)			6.7 (14.77)
160	165.3	346			293	356	13.1 (1900.00)	15.9 (2306.10)		6.9 (15.21)
190	189.8	307			323	391	12.8 (1856.49)	15.5 (2248.09)		7.1 (15.65)
205	205.0	273			359	435	12.8 (1856.49)	15.5 (2248.09)		7.3 (16.09)
240	235.5	240			377	457	11.7 (1696.94)	14.1 (2045.04)		7.5 (16.53)
280	282.5	201			399	479	10.3 (1493.89)	12.4 (1798.47)		7.9 (17.42)
310	306.9	184			432	519	10.3 (1493.89)	12.4 (1798.47)		8.1 (17.86)
380	376.4	151			464	531	9.0 (1305.34)	10.3 (1493.89)		8.6 (18.96)
410	409.9	138			477	555	8.5 (1232.82)	9.5 (1377.86)		8.9 (19.62)

1: Do not drive motor with max. torque/max. pressure in more than 6 seconds.
2: Recommended hydraulic oil: ISO-VG32 or same class.
3: If output torqure is more than 280N・m, it is highly recommended to use spline shaft.
4: Input pressure must be less than 21MPa (3045.80psi) at maximum.
5: Max.permissible back pressure is 10.3MPa (1493.89psi), but in the case of operating with more than1.8MPa(261.07psi), drain piping is required to protect oil sealing.
6: ΔP means differentical pressure.
