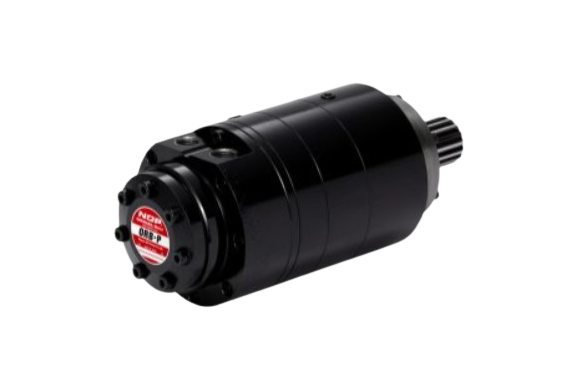

Nippon Oil Pump Orbmark Motor ORB-P High Power Motor

Manufacturer: Nippon Oil Pump Co., Ltd.
Model: ORB-P

Features

Hydraulic motor with integrated reducer
Hydraulic motor with built-in reducer
Made in Japan quality
Compact size/Energy saving mechanism due to integrated structure of motor and reducer
4 times higher torque by NOP designated reducer (1/4)

Size	Theoretical Displacement (cm3/rev)	Normal Continuous Revolution (rpm)	Normal Continuous Flow rate ℓ/min (US gal/min)	Max. Instantaneous Flow rate ℓ/min (US gal/min)	Normal Continuous Torque (N・m)	Max. Instantaneous Torque (N・m)	Normal Continuous Pressure △P MPa (psi	Max. Instantaneous Pressure △P MPa (psi)	Permissible Back Pressure MPa (psi	Approx. Weight kg (lbs)
050	54.0	259	57 (15.06)	68 (17.96)	440	540	15.5 (2248.09)	19.0 (2755.72)	7 (1015.27) *See note 4	24.2 (53.35)
070	71.4	198		70 (18.49)	612	732				24.5 (54.01)
100	98.5	147			840	984				24.7 (54.45)
120	118.4	120			1000	1200		18.5 (2683.20)		24.9 (54.90)
130	129.0	110				1300	14.0 (2030.53)	18.5 (2683.20)		25.0 (55.12)
160	165.3	87					10.5 (1522.90)	14.5 (2103.05)		25.3 (55.78)
190	189.8	77					9.5 (1377.86)	12.7 (1841.98)		25.4 (56)
205	205.0	68					8.5 (1232.82)	11.5 (1667.94)		25.6 (56.44)
240	235.5	60					7.5 (1087.79)	9.8 (1421.37)		25.8 (56.88)
280	282.5	50					6.5 (942.75)	8.2 (1189.31)		26.2 (57.76)
310	306.9	46					6.0 (870.23)	7.5 (1087.79)		26.4 (58.20)
380	376.4	38					4.5 (652.67)	6.3 (913.74)		26.9 (59.30)
410	409.9	35					4.5 (652.67)	5.7 (826.72)		27.2 (59.97)

1: Do not drive motor with max. torque/max. pressure in more than 6 seconds.
2: Recommended hydraulic oil: ISO-VG32 or same class.
3: Max. input pressure must be less than 21MPa (3045.80 spi).
4: Max.permissible back pressure is 7MPa (1015.27 Spi), but in the case of operating with more than 1.8MPa (261.07spi), drain piping is required be implemented to protect oil seal.
5: Displacement capacity per one rotation is 4 times larger than above theoretical displacement.
6: ΔP means differential pressure.
7: Unit weight of 4 bolt flange model is 2.1kg (4.63lbs) heavier than above weight.
8: Gear oil is filled by NOP® factory before shipping out.
