Manufacturer: Nippon Oil Pump Co., Ltd.

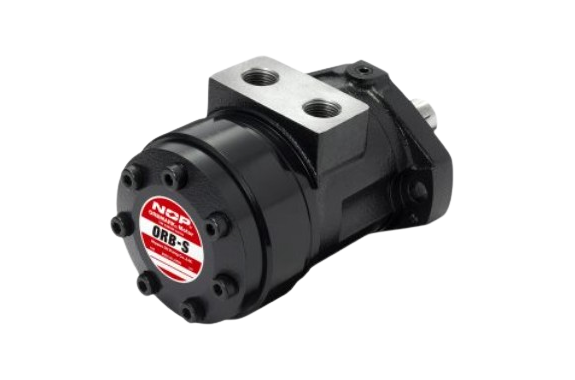

Model: ORB-S
Features
- High performance hydraulic motor
- Made in Japan quality
- Features higher torque version of ORB-M
| Applications | Power source for construction machine, agricultural vehicle, boat etc. |
|---|
| Load-bearing capacity | Permissible for radial load and thrust load |
|---|
| Serial/parallel connection | Both connections applicable |
|---|
| Rotation direction | Both directions usable (Clockwise/Counter-clockwise) |
|---|
Specifications
| Size | Theoretical Displacement (cm3/rev) | Normal Continuous Revolution (rpm) | Normal Continuous Flow rate ℓ/min (US gal/min) | Max. Instantaneous Flow rate ℓ/min (US gal/min) | Normal Continuous Torque (N・m) | Max. Instantaneous Torque (N・m) | Normal Continuous Pressure △P MPa (psi) | Max. Instantaneous Pressure △P MPa (psi) | Permissible Back Pressure MPa (psi) | Approx. Weight kg (lbs) |
|---|
| 050 | 54.0 | 1034 | 57 (15.06) | 68 (17.96) | 110 | 135 | 15.5 (2248.09) | 19.0 (2755.72) | 7 (1015.27)*note 5 | 7.1 (15.65) |
|---|
| 070 | 71.4 | 790 | 76 (20.08) | 153 | 183 | 7.2 (15.87) |
|---|
| 100 | 98.5 | 588 | 210 | 246 | 7.4 (16.31) |
|---|
| 120 | 118.4 | 478 | 252 | 300 | 18.5 (2683.20) | 7.6 (16.76) |
|---|
| 130* | 129.0 | 438 | 250 | 330 | 14.0 (2030.53) | 7.7 (16.98) |
|---|
| 160 | 165.3 | 346 | 322 | 383 | 17.0 (2465.65) | 8.0 (17.64) |
|---|
| 190 | 189.8 | 307 | 363 | 432 | 8.1 (17.86) |
|---|
| 205 | 205.0 | 273 | 403 | 475 | 8.3 (18.3) |
|---|
| 240 | 235.5 | 240 | 395 | 495 | 12.0 (1740.46) | 15.5 (2248.09) | 8.5 (18.74) |
|---|
| 280 | 282.5 | 201 | 410 | 479 | 10.5 (1522.90) | 12.5 (1812.98) | 8.9 (19.62) |
|---|
| 310 | 306.9 | 184 | 440 | 519 | 9.1 (20.06) |
|---|
| 380 | 376.4 | 151 | 464 | 531 | 9.0 (1305.34) | 10.5 (1522.90) | 9.6 (21.16) |
|---|
| 410 | 409.9 | 138 | 470 | 555 | 8.5 (1232.82) | 10.0 (1450.38) | 9.9 (21.83) |
|---|
- 1： Do not drive motor with max. torque or max. pressure in more than 6 seconds.
- 2： Recommended hydraulic oil: ISO-VG32 or same class.
- 3： If output torque exceeds 280N・m, it is highly recommended to use spline shaft.
- 4： Max. Input torque must be less than 21MPa (3045.80 psi).
- 5： Max. permissible back pressure is 7MPa (1015.27psi), but in the case of operating with more than 1.8MPa (261.07 psi), drain piping is required to protect oil sealing.
- 6： ΔP means differential pressure.
