Nippon Oil Pump NOP

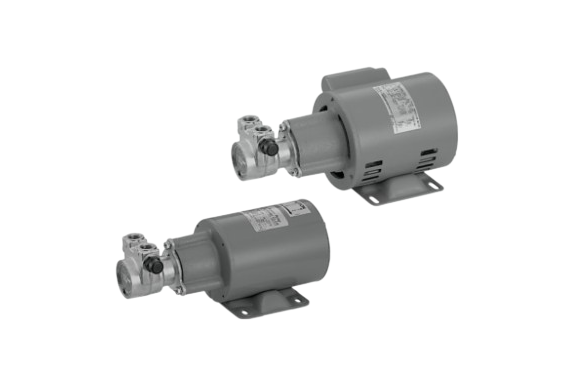

Nippon Oil Pump Procon Pumps 1500 Series With Integrated Motor
Manufacturer: Nippon Oil Pump Co., Ltd.
Model: 1500 Series
Features
- Water pump / Small capacity
- Single phase/3 phases integrated motor
- Self-priming type
- Small capacity 0.8～6.1ℓ/min (0.21～1.61 US gal/min)
- Made of forged brass
Specifications
| Material of pump body | Discharge flow rate ℓ/min (US gal/min) | Max. discharge pressure MPa (psi) | Rotation direction (from the view of nameplate) | Approx. Weight kg (lbs) | Standard rotation speed (rpm) |
|---|---|---|---|---|---|
| Forged brass | 0.8～6.1 (0.21～1.61) | 1.4 (203.05psi) | Clockwise | 1.15(2.53lbs)(CO type: 1.05 (2.31lbs)) | 1450/50Hz 1750/60Hz |
