Nippon Oil Pump NOP

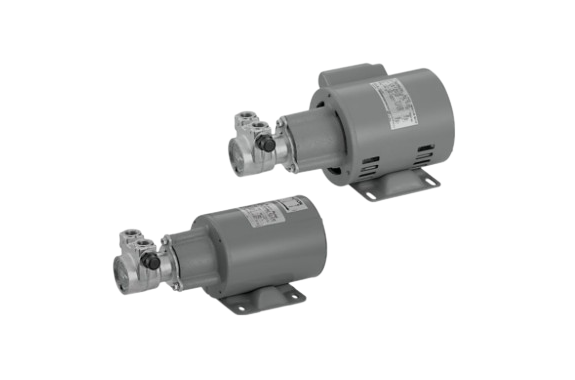

Nippon Oil Pump Procon Pumps 1600 Series With Integrated Motor
Manufacturer: Nippon Oil Pump Co., Ltd.
Model: 1600 Series
Features
- Water pump with small capacity
- Single phase/3 phase motor integrated
- Self-priming type
- Small capacity 0.8～6.1ℓ/min (0.21～1.61 US gal/min)
- Made of stainless steel
Specifications
| Pump body | Discharge flow rate L/min (US gal/min) | Max. discharge pressure MPa (psi) | Rotation direction (from the view of nameplate) | Approx. Weight kg (lbs) | Standard revolution (rpm) |
|---|---|---|---|---|---|
| Stainless steel | 0.8～6.1 (0.21～1.61) | 1.4 (203.05) | Clockwise | 1.25 (2.76) | 1450/50Hz 1725/60Hz |
