Nippon Oil Pump NOP

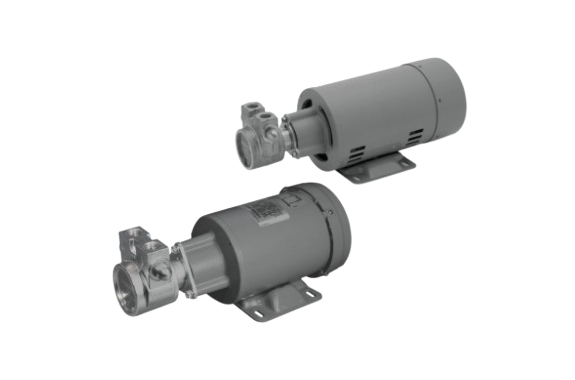

Nippon Oil Pump Procon Pumps 3600 Series With Integrated Motor
Manufacturer: Nippon Oil Pump Co., Ltd.
Model: 3600 Series
Features
- Large flow type NOP water pump with integrated motor
- 3 Phase motor integrated
- Large capacity 16.1～41.8ℓ/min (4.25～11.04 gal/min)
- Made of stainless steel
- NOTED: Not self-priming type *Suction pressure must be positive
Specifications
| Material of pump body | Discharge flow rate ℓ/min (US gal/min) | Max.Discharge pressure MPa(psi) | Rotation direction (from the view of nameplate) | Approx. weight kg (lbs) | Revolution (rpm)/Freq. |
|---|---|---|---|---|---|
| Stainless steel | 16.1～41.8 (4.25～11.04) | 1.75 (253.82) | Clockwise | 6.8 (14.99) | 1450/50Hz 1725/60Hz |
