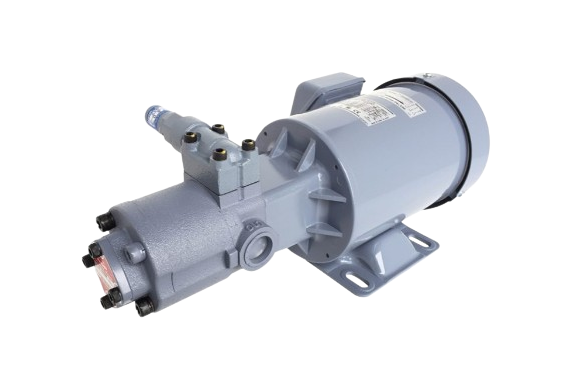

Nippon Oil Pump Trochoid Pumps 2MY-2HB
Manufacturer: Nippon Oil Pump Co., Ltd.
Model: 2MY-2HB
Features
- Three phase motor integrated
- Motor output: 200W/400W/750W/1500W
- Small capacity (2.8～20cm³/rev)
- Middle discharge pressure type
Specifications
| Model | Theoretical discharge ℓ/min (US gal/min) | Motor rotation speed 50Hz/1500rpm | Theoretical discharge ℓ/min (US gal/min) | Motor rotation speed 60Hz/1800rpm | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max. discharge pressure MPa (psi) | Max. discharge pressure MPa (psi) | |||||||||
| 200W | 400W | 750W | 1500W | 200W | 400W | 750W | 1500W | |||
| TOP-203HBM | 4.2 (1.11) | 1.7 (246.56) | 3.0 (435.11) | 3.0 (435.11) | 3.0 (435.11) | 5 (1.32) | 1.3 (188.55) | 3.0 (435.11) | 3.0 (435.11) | 3.0 (435.11) |
| TOP-204HBM | 6 (1.59) | 1.2 (174.05) | 3.0 (435.11) | 3.0 (435.11) | 3.0 (435.11) | 7.2 (1.9) | 0.9 (130.53) | 2.3 (333.59) | 3.0 (435.11) | 3.0 (435.11) |
| TOP-206HBM | 9 (2.38) | 0.7 (101.53) | 1.8 ( 261.07) | 2.5 (362.60) | 2.5 (362.60) | 10.8 (2.85) | 0.5 (72.52 ) | 1.4 (203.05) | 2.5 (362.60) | 2.5 (362.60) |
| TOP-208HBM | 12 (3.17) | 0.5 (72.52) | 1.3 (188.55) | 2.5 (362.60) | 2.5 (362.60) | 14.4 (3.8) | 0.3 (43.51) | 1 (145.04) | 2.3 (333.59) | 2.5 (362.60) |
| TOP-210HBM | 15 (3.96) | 0.4 (58.02) | 1.1 (159.54) | 2.5 (362.60) | 2.5 (362.60) | 18 (4.76) | 0.3 (43.51) | 0.9 (130.53) | 2 (290.08) | 2.5 (362.60) |
| TOP-212HBM | 18 (4.76) | 0.3 (43.51) | 0.9 (130.53) | 2 (290.08) | 2 (290.08) | 21.6 (5.72) | ー | 0.7 (101.53) | 1.6 (232.06) | 2 (290.08) |
| TOP-216HBM | 24 (6.34) | 0.2 (29.01) | 0.7 (101.53) | 1.5 (217.56) | 1.5 (217.56) | 28.8 (7.61) | ー | 0.5 (72.52) | 1.2 (174.05) | 1.5 (217.56) |
| TOP-220HBM | 30 (7.93) | ー | 0.4 (58.02) | 1.2 (174.05) | 1.2 (174.05) | 36 (9.51) | ー | 0.3 (43.51) | 0.9 (130.53) | 1.2 (174.05) |
