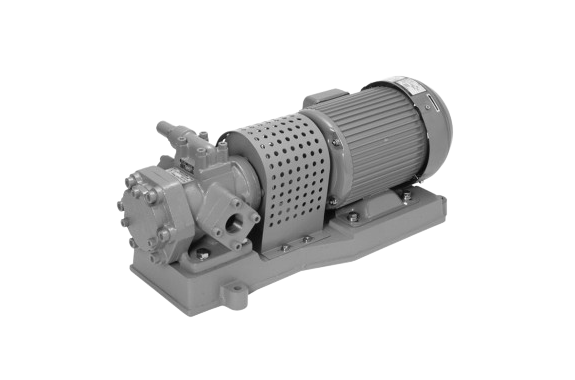

Nippon Oil Pump Trochoid Pumps 3MB-N3H Base Coupling Mount Type
Manufacturer: Nippon Oil Pump Co., Ltd.
Model: 3MB-N3H
Features
- Base coupling mount type pump / conventional/special motor can be connected
- 1500W/2200W/3700W/5500W type motor connectable
- Mid capacity flow rate (26～65cm³/rev)
- Mid/High pressure type (2～4MPa)
Specifications
| Model | Theoretical displacement (cm³/rev) | Revolution 50Hz/1500rpm | Theoretical displacement (cm³/rev) | Revolution 60Hz/1800rpm | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max. discharge pressure MPa (psi) | Max. discharge pressure MPa (psi) | |||||||||
| 1500W | 2200W | 3700W | 5500W | 1500W | 2200W | 3700W | 5500W | |||
| TOP- N320H | 39.0 | 1.3 (188.55) | 2.2 (319.08) | 4.0 (580.15) | 4.0 (580.15) | 46.8 | 1.0 (145.04) | 1.7 (246.56) | 3.2 (464.12) | 4.0 (580.15) |
| TOP-N330H | 58.5 | 0.8 (116.03) | 1.4 (203.05) | 2.6 (377.10) | 4.0* (580.15) | 70.2 | 0.5 (72.52) | 1.0 (145.04) | 2.1 (304.58) | 3.3 (478.63) |
| TOP-N340H | 78.0 | 0.5 (72.52) | 0.9 (130.53) | 1.8 (261.07) | 3.0* (435.11) | 93.6 | 0.3 (43.51) | 0.6 (87.02) | 1.4 (203.05) | 2.3 (333.59) |
| TOP-N350H | 97.5 | 0.3 (43.51) | 0.7 (101.53) | 1.4 (203.05) | 2.0* (290.08) | 117.0 | 0.1 (14.50) | 0.4 (58.02) | 1.0 (145.04) | 1.8 (261.07) |
