Nippon Oil Pump NOP

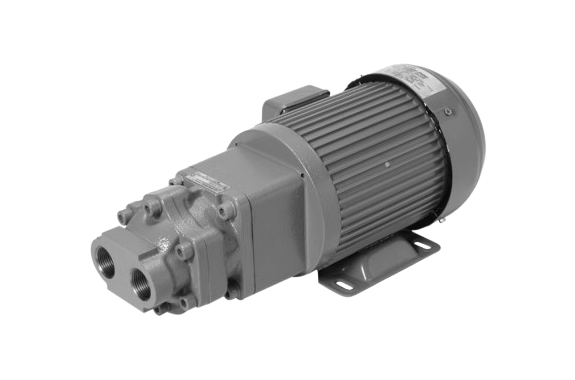

Nippon Oil Pump Trochoid Pumps 3MF With Three Phase Motor
Manufacturer: Nippon Oil Pump Co., Ltd.
Model: 3MF
Features
- Three phase motor integrated
- Motor type: 750W/1500W/2200W
- Middle capacity (26～52cm³/rev)
- Middle discharge pressure
Specifications
| Model | Theoretical discharge ℓ/min (US gal/min) | Motor rotation speed 50Hz/1500min-1 | Theoretical discharge ℓ/min (US gal/min) | Motor rotation speed 60Hz/1800min-1 | |||||
|---|---|---|---|---|---|---|---|---|---|
| Max. discharge pressure MPa (psi) | Max. discharge pressure MPa (psi) | ||||||||
| 750W | 1500W | 2200W | 750W | 1500W | 2200W | ||||
| TOP-N320 | FA FA VB FB | 39 (10.3) | 0.4 (58.02) | 1.3 (188.55) | 2.1 (304.58) | 46.8 (12.36) | 0.2 (29.01 ) | 1 (145.04) | 1.7 (246.56) |
| TOP-N330 | FA FA VB FB | 58.5 (15.45 ) | 0.1 (14.50) | 0.8 (116.03) | 1.3 (188.55) | 70.2 (18.54 ) | ー | 0.6 (87.02) | 1 (145.04) |
| TOP-N340 | FA FA VB FB | 78 (20.61) | ー | 0.5 (72.52) | 0.9 (130.53) | 93.6* ( 24.73*) | ー | 0.3 (43.51) | 0.6 (87.02) |
