Nippon Oil Pump NOP

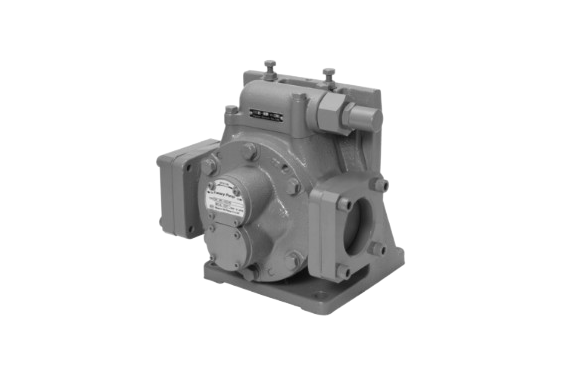

Nippon Oil Pump Trochoid Pumps GPL Pumphead
Manufacturer: Nippon Oil Pump Co., Ltd.
Model: GPL
Features
- High viscosity (Kinematic viscosity: 46～2000mm²/sec)
- Large capacity type (150/200/250cm³/rev)
- Low discharge pressure 1MPa (145.04psi)
- Base coupling mount type available (model MB-GPL)Base coupling
- Large capacity/High viscosity oil type (2～4MPa)
Specifications
| Model | Theoretical displacement (cm³/rev) | Theoretical discharge ℓ/min (US gal/min) | Max. discharge pressure MPa (psi) | Max. rotation speed min-1 | Approx. weight kg (lbs) | |
|---|---|---|---|---|---|---|
| 1000min-1 | 1200min-1 | |||||
| GPL-150IVB | 150 | 150 (39.63) | 180 (47.56) | 1.0 (145.04) | 1800 | 29.0 (63.93) |
| GPL-200IVB | 200 | 200 (52.83) | 240 (63.40) | 1.0 (145.04) | 1800 | 30.0 (66.14) |
| GPL-250IVB | 250 | 250 (66.04) | 300 (79.25) | 1.0 (145.04) | 1800 | 32.0 (70.55) |
