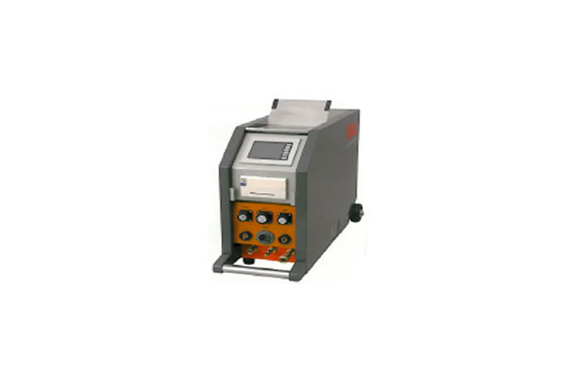

NISSAN TANAKA PIPEAUTO Automatic Pipe Welding Machine

Manufacturer: Nissan Tanaka
Model: PIPEAUTO

It is the TANAKA automatic pipe welding machine that can weld a pipe from φ10.5 to φ406.4mm by several kinds of welding heads.

Commodity name

PIPEAUTO 200

Applications

Stainless pipes welding for food factory, sanitary plumbing.

Features

1. Easy operation
The main body adopts LCD touch panel. The user can easily make the welding data by operating the touch panel. The operation is also possible by external remote pendant.

2. Enhancement of ‘alarm function and diagnostic function’
The system displays warning messages such as confirming the operation of the cooling water circulation device and troubleshooting abnormal circumstances.

3. Several types and sizes of welding head
We have prepared the light-weight enclosed-type welding head in addition to the conventional open-type.

4. Intelligence function
You can use memorized welding data (SUS304) and customize the welding data (100 conditions).

Specifications

Item	Specifications
Power source model	PIPEAUTO 200
Input voltage	200V (Single phase)
Output current	4～180A
Ratio of rated use	40%
Arc start	Radio-frequency radiation
Dimension	W264×D670×H500（㎜）
Weight	About 28kg
Printer	Equipped
Tack welding torch	Option
Remote pendant	Equipped
Welding head	PRM/PRL
Wire feeder	MPW-3H / MPW-3M
Cable length	Standard: 8M long
