Japan, Nissan Tanaka, Welding Tools

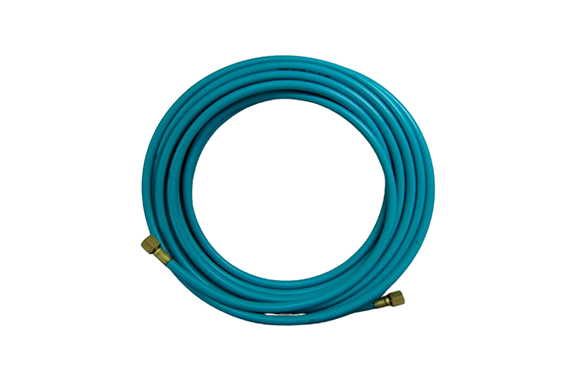

NISSAN TANAKA SANARC Drytube
Manufacturer: Nissan Tanaka
Model: SANARC
“SANARC DRYTUBE” is a shield gas hose for the MAG and TIG welding. Moisture in the hose can be discharged with gas purge for a short time. Moreover, it is lighter than a past rubber hose (about 60%). The generation of the blow hall by the moisture influence can be decreased when aluminum is welded.
Commodity name
SANARC DRYTUBE
Applications
The MAG and TIG welding shield gas hose.
Features
1. You can discharge moisture in the hose with a gas purge for a short time. (about 3 min).
2. Moisture influence can decrease the generation of the blow hall when welding aluminum.
3.The rubber hose is lighter than it and excels in durability and heatproof.
(40% light in 20m comparison. )
4. The resin hose does not crack due to aged deterioration (ozone cracking). It has a three-layer structure. The first layer possesses an inside water-shedding quality. The second and third layers prevent the penetration of the atmosphere from the outside. In particular, they prevent the penetration of carbon dioxide with a large transmission coefficient, maintaining the purity of the shield gas.
Specification
Item | Specification | Note |
---|---|---|
Applied gas | Shielding gas for welding | Ar,Ar+H2,CO2,O2,He |
Pressure range | 1.0 MPa or less | |
Dimensions | outside diameter: 11㎜、inside diameter: 6㎜ | |
Joint geometry | 9/16-18UNF | |
Minimum radius | 42㎜ | |
Operating temperature limit | 0-50℃ | (20℃) |
