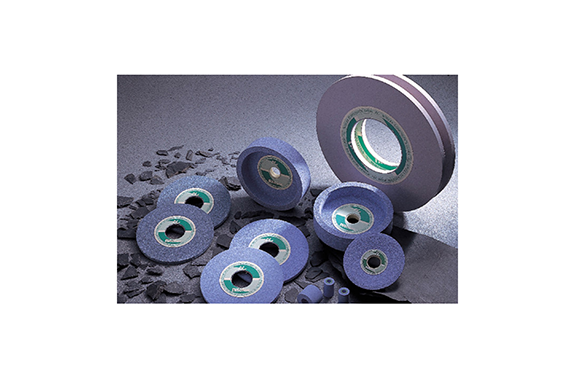

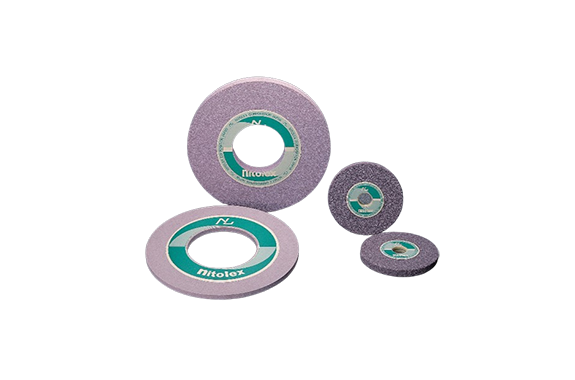

Nitolex NX Grinding Wheels

Manufacturer: Nitolex Corporation
Model: NX

Features

NX / NX2
A new type of aluminum oxide, NX grain, consists of a very small polycrystalline microstructure.Conventional aluminum oxide fuses and remains mostly monocystalline, whereas NX uses a different composition.
Owing to its polycrystalline microstructure, only a small volume of the grit wears away under grinding forces.
The grit maintains its sharpness and gives above 4 times the life of conventional wheels, which offers dramatically longer life, better performance, and higher productivity.
The monocystalline aluminum oxide added to the special ceramics causes NX2 grain to fracture easily.Therefore, the grit maintains its sharpness as NX grain. It offers good performance and much lower grinding cost.

ADVANCED BOND SYSTEM

We developed the NX/NX2 bond-based ceramic grinding technology, offering superior grain performance. This allows us to choose the best bond for each grinding condition, producing Vitrified and Polynoid (Resinoid) bond wheels.
1. Greater stock removal
Reduces force and boosts productivity.
2. High surface quality
Minimizes deposition and rejects.
3. Higher accuracy
Cuts cycle time and improves productivity.
4. Long life
Doubles dressing intervals and reduces stock removal by a third.
NX BOND
Vitrified Bond

BOND	TYPE	NOTE
V	Standard	For wet & dry grinding
VX2	High strength	Alloy steels, hardened steels
VP	Fragile	Nonferrous metals, Non-hardened steel

Polynoid Bond

BOND	TYPE	NOTE
B	Standard	For wet & dry grinding
BX2	For wet grinding	Roll grinding, double-disc surface grinding
PO9G	Long life	Heavy load grinding

NX WHEEL

Grain	Type	Material	Grinding
NX(2)H	Tougher	＜HRc 60 hardened steels	Groove Threat, Angular Plunge
NX(2)	Standard	All kind steels	External cylindrical, Centerless
NX(2)L	Weaker	＞HRc 50 soft steels	Surface, Internal
