Nitolex Corporation
Nitolex Salios Wheels
Manufacturer: Nitolex Corporation
Model: Salios
Features
Grinding Wheels for Cermet

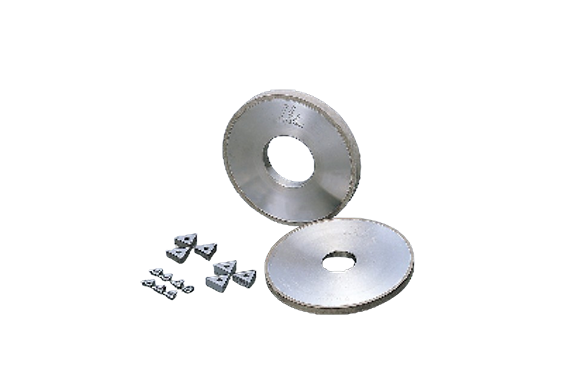

Salios is a new kind of diamond wheel made especially for cermet applications, based on Uplas bond; a composite of special ceramics bond and metal bond.
Characteristics of Salios Wheels
The conventional wheel soon loads, consequently spoils its sharpness and results in burn marks and cracks in cermet grinding. This problem increases the need for dressing and significantly decrease the wheel life and efficient grinding.
The Salios wheels, which use new Uplas bond, are resistant to loading and dull sharpness, which radically decreases the
need for dressing, stabilizes the surface quality and significantly improves the efficiency.
Range of Bonds
| Bond | Mesh size |
| UB75M | 400～2000 |
*Other grain sizes are possible in a case
Example Applications
Chip breakers grinding
Horizontal spindle surface grinder- Tool grinder (Makino)
Wet (water solution) Stock removal: 3 mm
Wheel speed: 18 m/sec Work speed: 12 mm/min Depth of cut: 3 mm/pass
Wheel: SD 600 J UB75M 1A1BR 100D x 10T x 38.1H x 3X
| Salios | Conv. Resin #325 | |
|---|---|---|
| Dressing intervals | 10 pieces | 3 pieces |
| Profile holding | Good | – |
| Sharpness | Excellent | Obvious wheel loading |
*Purpose of dressing: To restore the wheel to its original shape and remove loading.
