NITTOSEIKO CO., LTD.
Nittoseiko Gear Parts Special Cold-Formed Parts
Manufacturer: NITTOSEIKO CO., LTD.
Model: Gear Parts
Features

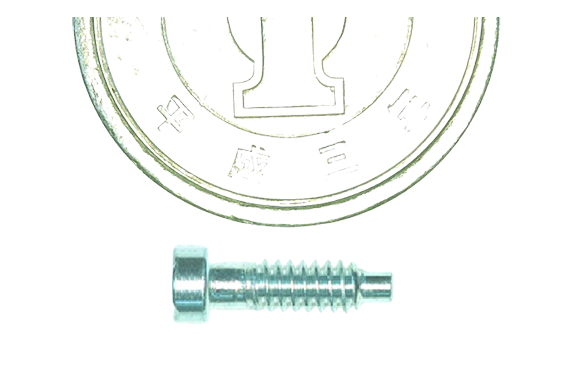

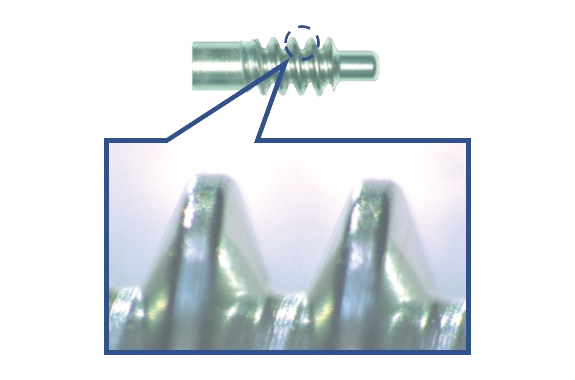

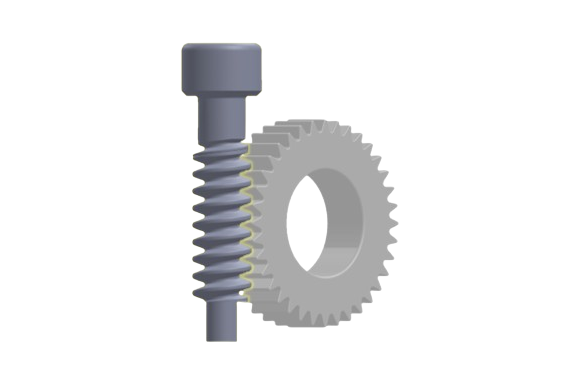

We manufacture “gear parts” using heading and rolling processes. This achieves significant cost reductions compared to cutting and grinding processes. Furthermore, heading processes offer the strength and smoothness of surfaces that are unique to them. We can handle even precision sizes.
Main uses
Automobiles, cameras, precision equipment, etc. (used in the motor drive parts listed on the left)
| Parameter | Range |
|---|---|
| Module | 0.1 ~ 0.6 |
| Pressure Angle | 20° |
| Number of Teeth | 1 or 2 |
| Pitch Diameter | 1.2 ~ 6.1 mm |
| Pitch Diameter (min) | 1.0 ~ 4.9 mm |
| Bottom Diameter | 0.75 ~ 3.4 mm |
