Nok Corporation

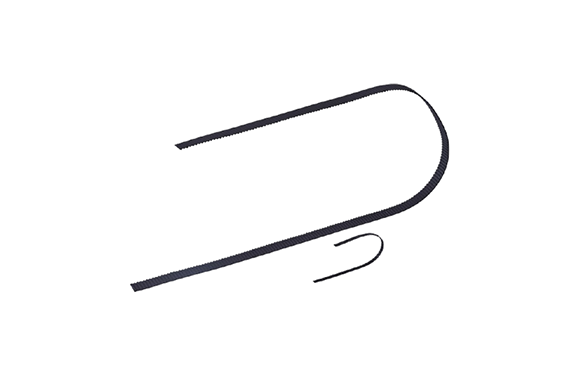

Nok Antistatic Belt
Manufacturer: Nok.
Model:
Features
- While standard material U496 and U497 show surface electrical resistance 10^10 Ω, enhancing antistatic performance to the 10^8 Ω range, the products are good for applications that prevention from stickiness of dust or dielectric breakdown is required.
- Available for seamless type in any length on demand with your request, from 1 pc lot order
※There are limitations on the minimum size - In addition to the standard steel, stainless steel and fiberglass are also available depending on the usage environment and application.

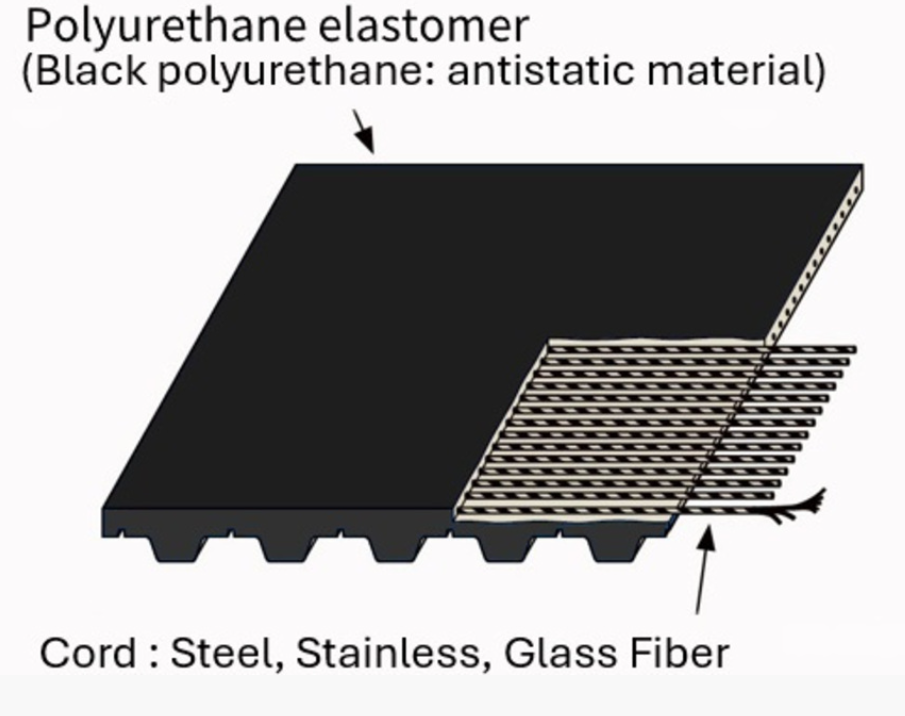

Product Structure
Specifications
| Belt Type | Belt Teeth | Belt Width (mm) | Main Material | Cord |
|---|---|---|---|---|
| Flex type | MA3, MA5, AT5, T5 | 7, 10, 15, 20, 25, 40, 50 | – | – |
| T10 | 10, 15, 20, 25, 40, 50, 75, 100 | – | – | |
| AT10 | 15, 20, 25, 40, 50, 75, 100 | UG101 (Black) | Steel, Stainless Steel, Glass Fiber | |
| XL | 6.4, 7.9, 9.5, 12.7, 19.1, 25.4, 38.1, 50.8 | – | – | |
| L | 12.7, 19.1, 25.4, 38.1, 50.8, 76.2, 101.6 | – | – | |
| Joint type | F10-V | 6 | UG101 (Black) | Steel |
| Linear type | F10-V | 6 | UG101 (Black) | Steel |
