Nok Corporation

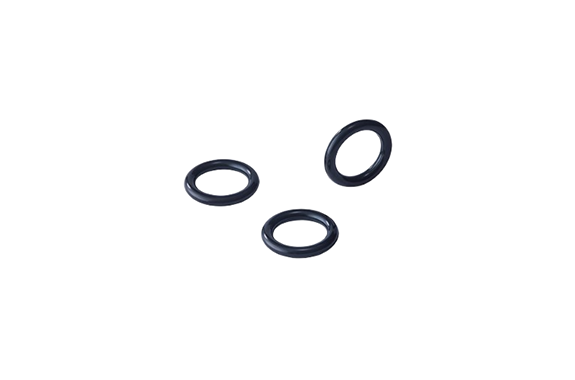

Nok Biomass O-rings
Manufacturer: Nok.
Features
- It is an environmentally friendly material that uses plant-derived sustainable raw materials for the rubber material.
- Biomass EPDM materials are EPDM materials that have a biomass content of＊1It is an eco-friendly material that has achieved 30%.
* EPDM: Ethylene propylene rubber - CO in polymers2Reduced emissions by 40%.
* CO during raw material manufacturing and transportation2Emissions - When biomass EPDM material is applied to general-purpose O-ring materials for water, they have the same characteristics as conventional EPDM materials.
CO2Estimation of emissions (according to NOK research)
Specifications
| Mat’l Characteristics | Units | General-Purpose EPDM (Currently Mat’l) | Biomass EPDM |
|---|---|---|---|
| Biomass Ratio | % (Sheet) | 0 | 30 |
| Basic Physical Properties | |||
| – Hardness | Duro-A | 72 | 70 |
| – Tensile Strength | MPa | 18.5 | 17.0 |
| – Elongation | % | — | 170 |
| Air/Heating Aging (150°C × 70h) | |||
| – Hardness change | Points | 1 | 2 |
| – Tensile Strength change rate | % | -2 | -14 |
| – Elongation change rate | % | -8 | -5 |
| Compression Set | 150°C × 70h (%) | 18 | 14 |
| Low Temperature Resistance | TR-10 (°C) | -49 | -48 |
