Nok Corporation

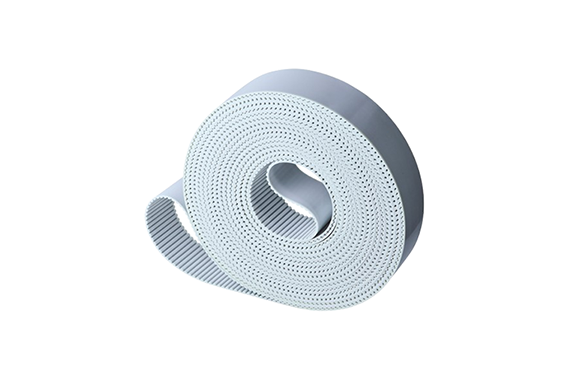

Nok Iron Rubber Long Flex Belt
Manufacturer: Nok.
Model: Iron Rubber.
Features
- It has no joints and can handle a maximum circumference of 30 m, making it suitable for use in high-load applications.
- The belt body is made of iron-tough “iron rubber” (thermoplastic polyurethane), which has excellent abrasion resistance, mechanical strength, and ozone resistance.
- It is possible to customize such as free length production, various profile fusions, and cutting processing (precision extrusion manufacturing method).
- We have a wealth of experience in clean rooms.

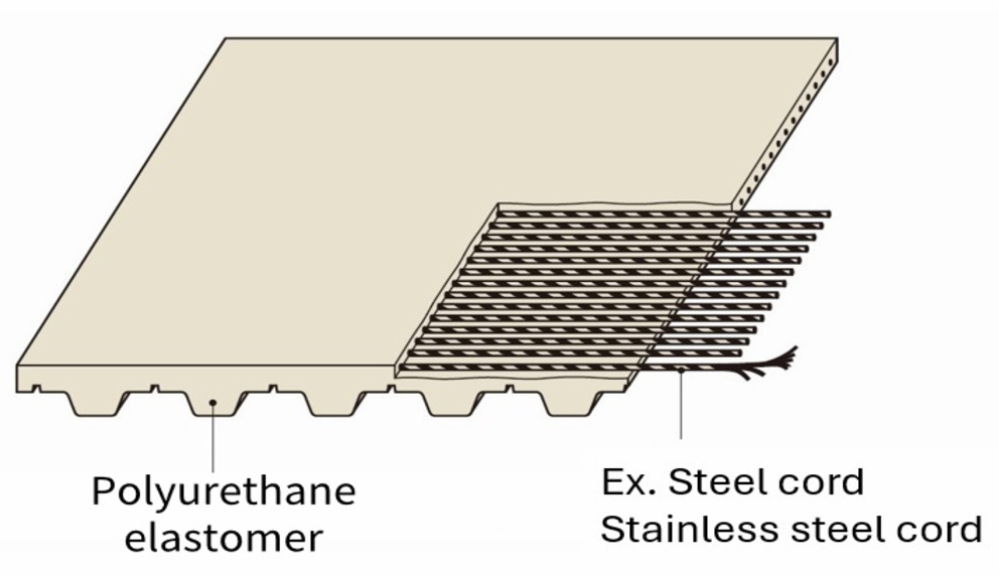

Product Structure
Specifications
| Belt Type | Belt Teeth | Belt Width (mm) | Main Material | Cord | Additional Spec. |
|---|---|---|---|---|---|
| Flex type | T10 | 15, 20, 25, 40, 50, 75, 100 | |||
| AT10 | 15, 20, 25, 40, 50, 75, 100 | ||||
| T20 | 25, 40, 50, 75, 100 | ||||
| AT20 | 25, 40, 50, 75, 100 | ||||
| MA8 | 15, 20, 25, 40, 50, 75, 100 | U497 (white) | Steel, Stainless | Tooth Surface, Clothing, etc. | |
| H | 19.1, 25.4, 38.1, 50.8, 76.2, 101.6 | ||||
| XH | 25.4, 38.1, 50.8, 76.2, 101.6 | ||||
| DT10 | 15, 20, 25, 40, 50, 75, 100 | ||||
| DH | 19.1, 25.4, 38.1, 50.8, 76.2, 101.6 |
