Nok Corporation

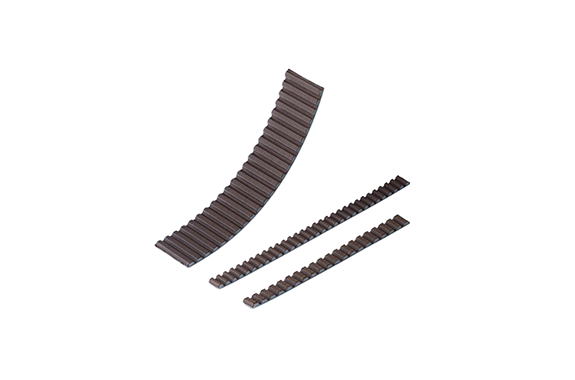

Nok Low-tooth μ Upholstered Belt
Manufacturer: Nok.
Model:
Features
- The low-friction belt that exceeds that of conventional products reduces power consumption and contributes to carbon neutrality.
- By supporting high loads, it contributes to improved productivity by further increasing speed and torque.
- Durability is improved by reducing friction in the tooth area.
- Low noise and vibration contribute to improving the working environment in factories.

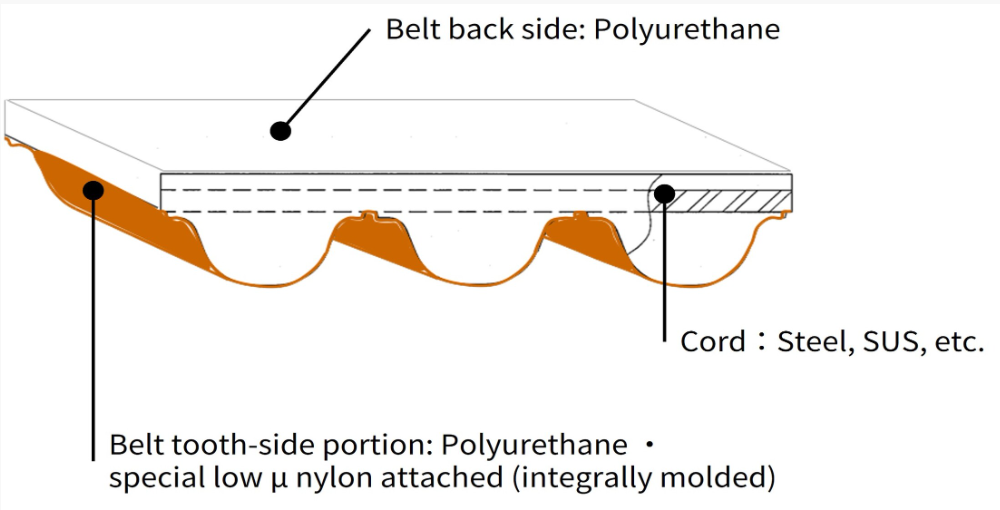

Product Structure

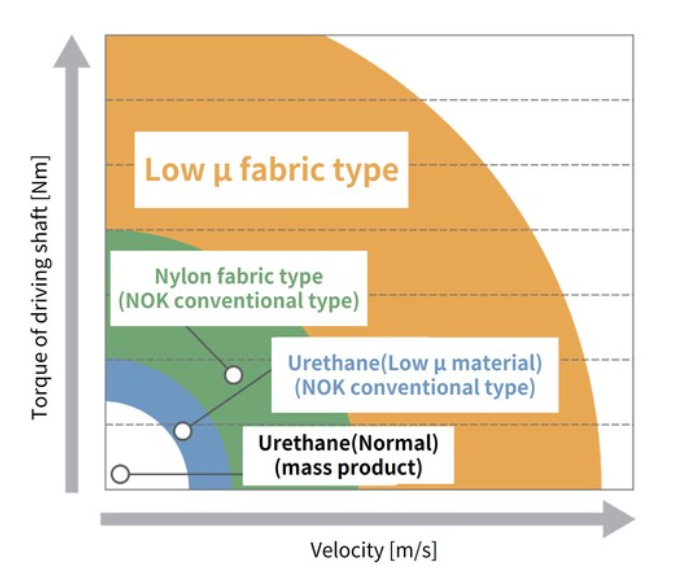

Range of Use
Specifications
| Belt Type | Belt Teeth | Belt Width (mm) | Main Material | Cord |
|---|---|---|---|---|
| Flex type (flex cutting linear type) | MA5 | 15, 20, 25, 40, 50 | U497 (white) | Steel, Stainless, Aramid Fiber, other |
| MA8 | 15, 20, 25, 40, 50, 75, 100 | U497 (white) | Steel, Stainless, Aramid Fiber, other | |
| AT5 | 15, 20, 25, 40, 50 | Please consult other materials separately. | Steel, Stainless, Aramid Fiber, other | |
| AT10 | 15, 20, 25, 40, 50, 75, 100 | Please consult other materials separately. | Steel, Stainless, Aramid Fiber, other | |
| AT20 | 25, 40, 50, 75, 100 | Please consult other materials separately. | Steel, Stainless, Aramid Fiber, other | |
| Linear type | – | – | Since the material is a dedicated material, it is separately examined according to the amount of use. | – |
