Manufacturer: Nok.
Model: Gasket.

Features

• Compared to conventional designs, radial space can be reduced by approximately 15%.
• There is no part deformation even under high pressure, providing stable sealing performance.

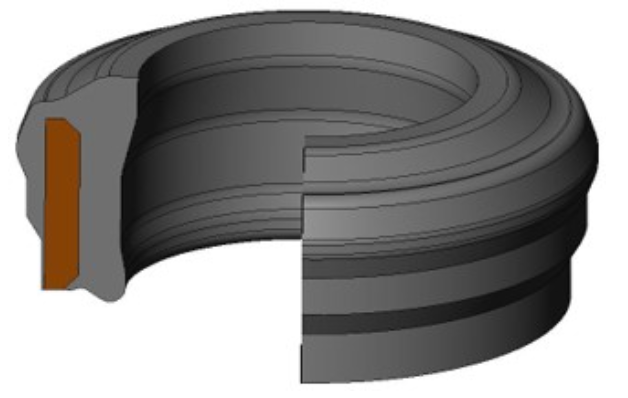

                                  Cylindrical type: Space saving

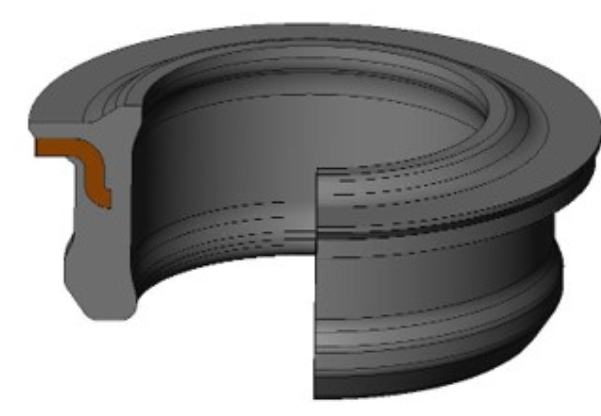

                                    Flange type: Focus on following variations in groove depth

Specification

Type	Cylindrical Type	Flange Type
Cross Section
Feature	– Space-saving design (~15% reduction in radial space). – Inner ring acts as backup ring for stable sealing under high pressure. – Can be assembled in either direction (no front/back).	– Also space-saving; suitable for grooves with variable depth. – Stable sealing under high pressure. – Suitable for low rigidity housings (e.g. resin).
