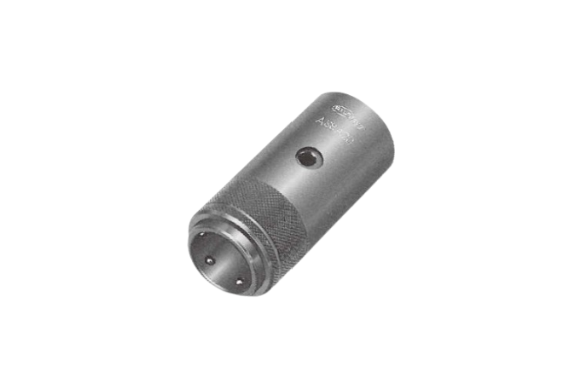

NT Tool Corporation ASBAJ Series Quick Change Drilling Chuck
Manufacturer: NT TOOL CORPORATION
Model: ASBAJ Series
Features
- One hand quick change.
- Thick and high rigidity.
- Easy and secure installation to spindle by eccentric lock washer.
Specifications

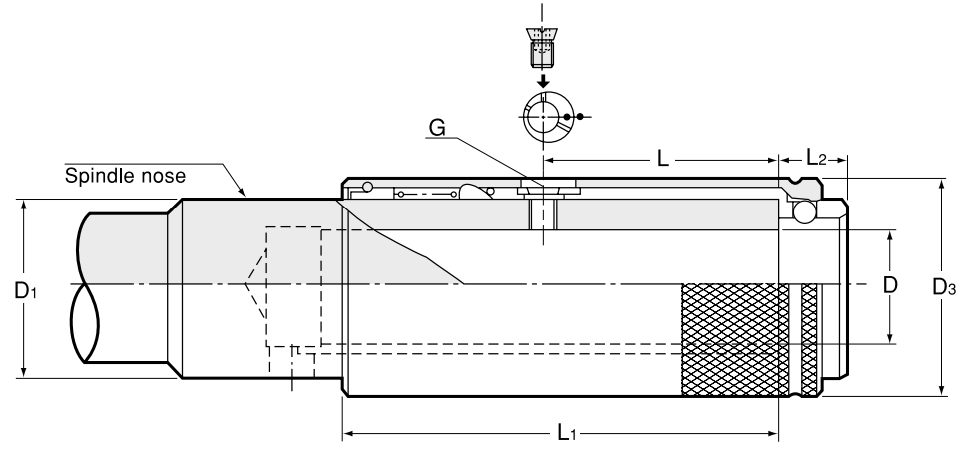

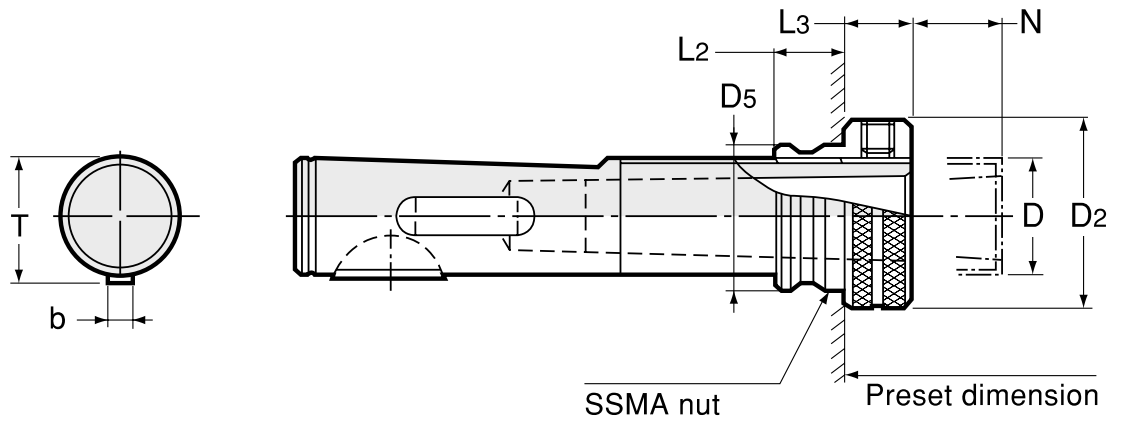

| Model | Model | Adjustable adapter | D H6/h6 | D1 | L ±0.2 | G | D2 ±0.2 | D3 ±0.3 | D5 -0.04 -0.1 | L1 | L2 | L3 | b | T | N | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASBAJ16 | SSMA16 | 16 | 16 | 25 | 34 | M6 | 26 | 33 | 19.9 | 62 | 9.5 | 9 | 5 | 17.1 | 28 | 0.2 |
| ASBAJ20 | SSMA20 | 20 | 20 | 32 | 34 | M6 | 33 | 40 | 25.4 | 68.5 | 11 | 9 | 5 | 21.1 | 28 | 0.3 |
| ASBAJ25 | SSMA25 | 25 | 25 | 37 | 38 | M8 | 40 | 46 | 31.9 | 75.5 | 12 | 10 | 6 | 26.5 | 30 | 0.4 |
| ASBAJ28 | SSMA28 | 28 | 28 | 40 | 38 | M8 | 42 | 49 | 33.9 | 77.5 | 12 | 10 | 6 | 29.5 | 30 | 0.4 |
| ASBAJ32 | SSMA32 | 32 | 32 | 45 | 45 | M8 | 47 | 55 | 37.9 | 89.5 | 13.5 | 10 | 8 | 33.5 | 36 | 0.6 |
| ASBAJ36 | SSMA36 | 36 | 36 | 50 | 45 | M8 | 54 | 60 | 43.4 | 96.5 | 16 | 10 | 8 | 37.5 | 36 | 0.7 |
| ASBAJ48 | SSMA48 | 48 | 48 | 67 | 57 | M10 | 72 | 80 | 57.9 | 122 | 20 | 14 | 10 | 49.9 | 47 | 1.5 |
