NT Tool Corporation ASBV Series Quick Change Drilling Chuck
Manufacturer: NT TOOL CORPORATION
Model: ASBV Series
Features
- Adapter is quick-changeable.
- Particularly slim and short design.
- Slim body and short projection length quick-changeable drilling chuck.
Specifications

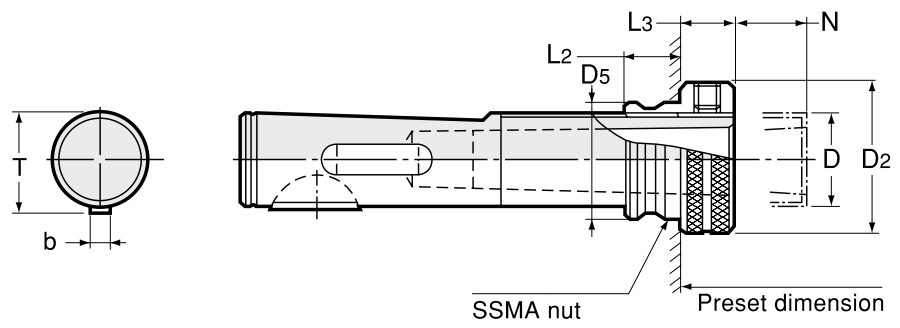

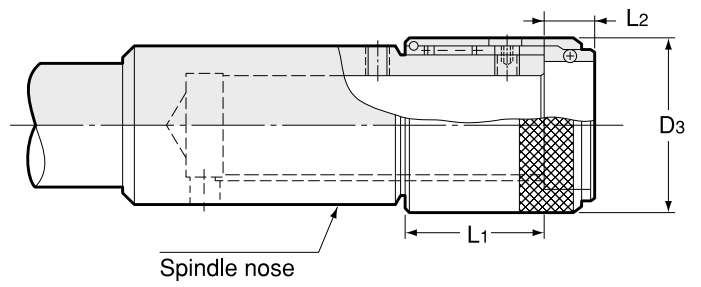

| Model | Model | Adjustable adapter | D H6/h6 | D2 ±0.2 | D3 ±0.3 | D5 -0.04 -0.1 | L1 | L2 | L3 | b | T | N | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ASBV16 | SSMA16 | 16 | 16 | 26 | 27 | 19.9 | 29.8 | 9.5 | 9 | 5 | 17.1 | 25 | 0.05 |
| ASBV20 | SSMA20 | 20 | 20 | 33 | 34 | 25.4 | 29.8 | 11 | 9 | 5 | 21.1 | 25 | 0.07 |
| ASBV22 | SSMA22 | 22 | 22 | 37 | 38 | 28.9 | 31.1 | 12 | 10 | 5 | 24.0 | 25 | 0.09 |
| ASBV25 | SSMA25 | 25 | 25 | 40 | 41 | 31.9 | 31.1 | 12 | 10 | 6 | 26.5 | 27 | 0.10 |
| ASBV28 | SSMA28 | 28 | 28 | 42 | 44 | 33.9 | 31.3 | 12 | 10 | 6 | 29.5 | 27 | 0.12 |
| ASBV32 | SSMA32 | 32 | 32 | 47 | 49 | 37.9 | 38.3 | 13.5 | 10 | 8 | 33.5 | 33 | 0.20 |
| ASBV36 | SSMA36 | 36 | 36 | 54 | 55 | 43.4 | 38.5 | 16 | 10 | 8 | 37.5 | 33 | 0.23 |
| ASBVN36 | SSMA36 | 36 | 36 | 54 | 60 | 43.4 | 38.5 | 16 | 10 | 10 | 39.2 | 33 | 0.23 |
| ASBV48 | SSMA48 | 48 | 48 | 72 | 73 | 57.9 | 50.5 | 20 | 14 | 10 | 49.9 | 44 | 0.54 |
