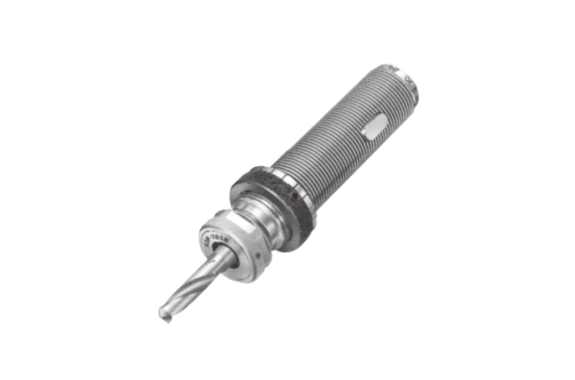

NT Tool Corporation DC･T/DC･N Series Straight Drill Chuck
Manufacturer: NT TOOL CORPORATION
Model: DC･T/DC･N Series
Feature
- Collet type adapter for straight shank drill.
- Use with drilling chuck with SSMA nut enables quick change.
Specifications

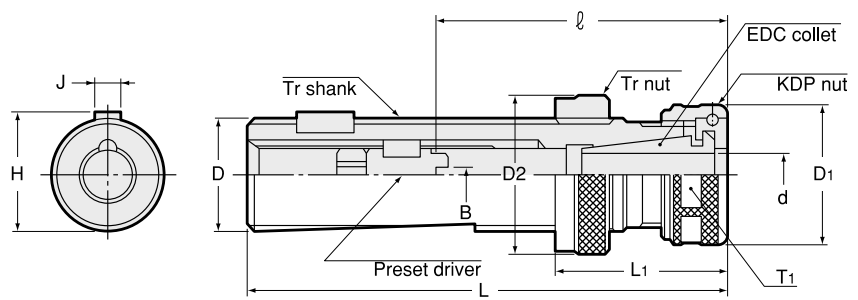

| Model | D h6 | Chuck Range | B | ℓ | Preset driver | L | D1 | D2 | L1 | H | J | T1 | Nut | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC-1619N /Tr16N | 16 | 2.8～9 | 0 | 18～58 | DCS -009 | 103 | 26 | 25 | 35～50 | 17.5 | 4 | 24 | KDP-1916 | 0.13 |
| DC-1619N /SSMA16N (×2) | 16 | 2.8～9 | 4 | 31～71 | DCS -409 | 103 | 26 | 26 | 32～47 | 17.5 | 4 | 24 | KDP-1916 | 0.14 |
| DC-1619T /Tr16×2 | 16 | 2.8～9 | 0 | 18～58 | DCS -009 | 103 | 26 | 25 | 35～50 | 17.0 | 3 | 24 | KDP-1916 | 0.13 |
| DC-1619T /SSMA16 (×2) | 16 | 2.8～9 | 4 | 31～71 | DCS -409 | 103 | 26 | 26 | 32～47 | 17.0 | 3 | 24 | KDP-1916 | 0.14 |
| DC-1919T /Tr19 | 19 | 2.8～9 | 0 | 18～58 | DCS -009 | 103 | 26 | 25 | 35～50 | 21.0 | 5 | 24 | KDP-1916 | 0.2 |
| DC-1919T /SSMA19-20 | 19 | 2.8～9 | 4 | 31～71 | DCS -409 | 103 | 26 | 26 | 32～47 | 21.0 | 5 | 24 | KDP-1916 | 0.2 |
