Manufacturer: NT TOOL CORPORATION

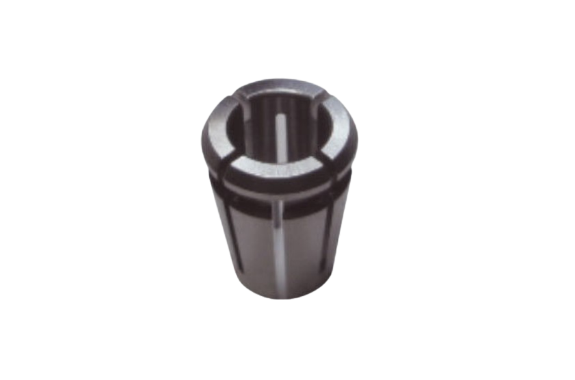

Model: EDC / FDC-07A / FDC-32B Series
Features
- Collet for stub holders, straight drill chuck etc.
Specifications
| Cutter’s shank dia. | Model |
|---|
| EDC-19 | EDC-24 | EDC-28 | EDC-36 |
|---|
| φ 2.8 ~ 3.0 | EDC-0319 | EDC-0324 | – | – |
| φ 3.0 ~ 3.3 | EDC-03319 | EDC-03324 | – | – |
| φ 3.3 ~ 3.6 | EDC-03619 | EDC-03624 | – | – |
| φ 3.6 ~ 3.9 | EDC-03919 | EDC-03924 | – | – |
| φ 3.9 ~ 4.2 | EDC-04219 | EDC-04224 | – | – |
| φ 4.2 ~ 4.5 | EDC-04519 | EDC-04524 | EDC-04528 | – |
| φ 4.5 ~ 5.0 | EDC-0519 | EDC-0524 | EDC-0528 | – |
| φ 5.0 ~ 5.5 | EDC-05519 | EDC-05524 | EDC-05528 | – |
| φ 5.5 ~ 6.0 | EDC-0619 | EDC-0624 | EDC-0628 | – |
| φ 6.0 ~ 6.5 | EDC-06519 | EDC-06524 | EDC-06528 | – |
| φ 6.5 ~ 7.0 | EDC-0719 | EDC-0724 | EDC-0728 | – |
| Cutter’s shank dia. | Model |
|---|
| FDC-07A |
|---|
| Φ 0.5 ～ 1.0 | FDC-01007A |
| Φ 1.0 ～ 1.5 | FDC-01507A |
| Φ 1.5 ～ 2.0 | FDC-02007A |
| Φ 2.0 ～ 2.5 | FDC-02507A |
| Φ 2.5 ～ 3.0 | FDC-03007A |
| Φ 3.0 ～ 3.5 | FDC-03507A |
| Φ 3.5 ～ 4.0 | FDC-04007A |
| Φ 4.0 ～ 4.5 | FDC-04507A |
| Φ 4.5 ～ 5.0 | FDC-05007A |
| Φ 5.0 ～ 5.5 | FDC-05507A |
| Φ 5.5 ～ 6.0 | FDC-06007A |
| Φ 6.0 ～ 6.5 | FDC-06507A |
| Φ 6.5 ～ 7.0 | FDC-07007A |
| Cutter’s shank dia. | Model |
|---|
| FDC-32B |
|---|
| Φ 20.0 ～ 20.5 | FDC-20532B |
| Φ 20.5 ～ 21.0 | FDC-21032B |
| Φ 21.0 ～ 21.5 | FDC-21532B |
| Φ 21.5 ～ 22.0 | FDC-22032B |
| Φ 22.0 ～ 22.5 | FDC-22532B |
| Φ 22.5 ～ 23.0 | FDC-23032B |
| Φ 23.0 ～ 23.5 | FDC-23532B |
| Φ 23.5 ～ 24.0 | FDC-24032B |
