NT Tool Corporation EM･A Series End Mill Chuck
Manufacturer: NT TOOL CORPORATION
Model: EM･A Series
Feature
- For sub-holder for milling chuck. Endmill is clamped by collet.
- Mainly used as special holder for endmilling with EMC or EMS collets.
Specifications

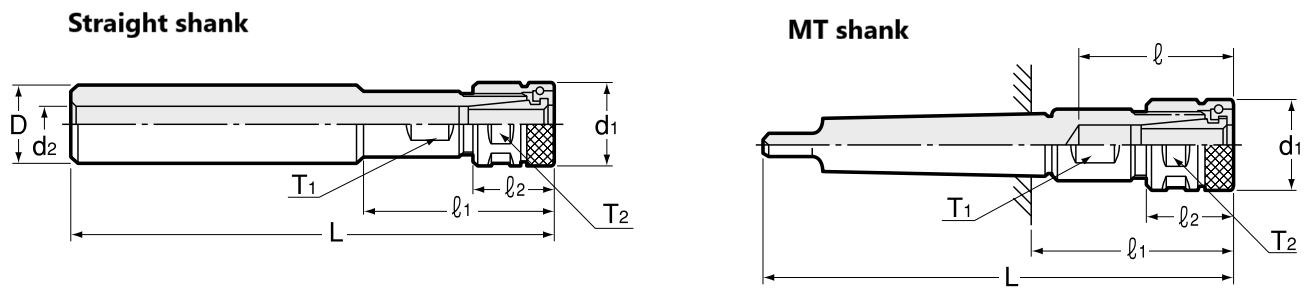

| Model | Series | Chuck Range | D h7 | MT | d1 | d2 | L | ℓ | ℓ1 | ℓ2 | T1 | T2 | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EM-1619A | 19 | 3～10 | 16 | — | 26 | 7.5 | 100 | — | 50 | 20 | 17 | 24 | 0.17 |
| EM-2019A | 19 | 3～10 | 20 | — | 26 | 11.5 | 125 | — | 50 | 20 | 17 | 24 | 0.23 |
| EM-2219A | 19 | 3～10 | 22 | — | 26 | 11.5 | 125 | — | 50 | 20 | 17 | 24 | 0.27 |
| EM-2519A | 19 | 3～10 | 25 | — | 26 | 11.5 | 150 | — | 50 | 20 | 17 | 24 | 0.41 |
| EM-3219A | 19 | 3～10 | 32 | — | 26 | 11.5 | 150 | — | 65 | 20 | 17 | 24 | 0.65 |
| EM-4219A | 19 | 3～10 | 42 | — | 26 | 11.5 | 175 | — | 80 | 20 | 17 | 24 | 1.17 |
| EM-T119A | 19 | 3～10 | — | 1 | 26 | — | 120 | 44 | 58 | 20 | 17 | 24 | 0.16 |
| EM-T219A | 19 | 3～10 | — | 2 | 26 | — | 150 | 52 | 75 | 20 | 17 | 24 | 0.27 |
