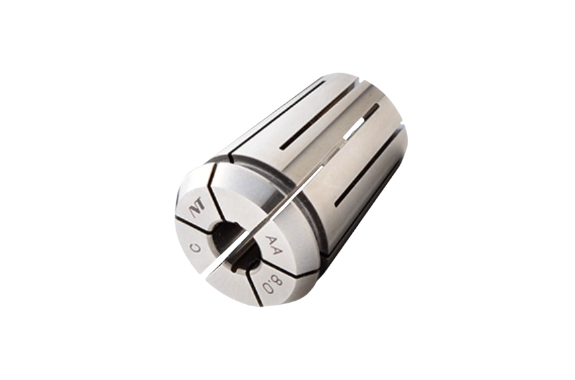

NT Tool Corporation FDC-C Series High Precision Collet (For Collet Through)
Manufacturer: NT TOOL CORPORATION
Model: FDC-C Series
Features

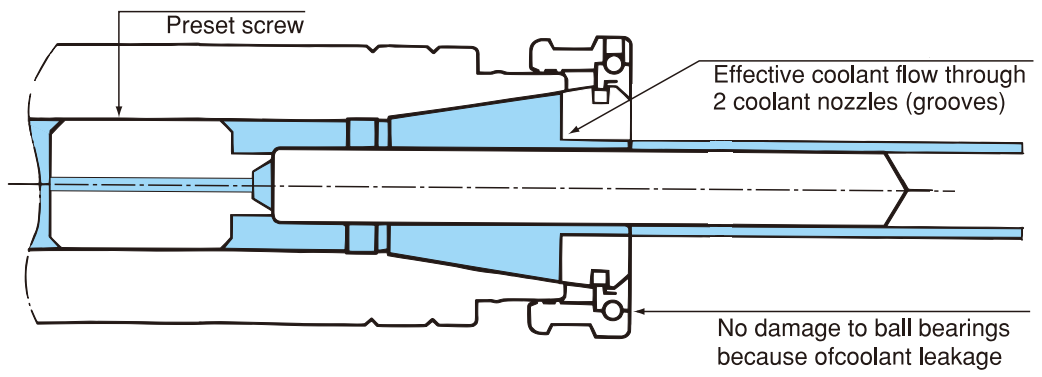

- Double tapered high precision collet for collet through coolant feeding.
- For high-precision collet holder HDC-A, quick change stub holder KH-E, etc.
Specifications
| Tool shank dia. | FDC-07-C (ø3 ~ ø7) | FDC-09-C (ø3 ~ ø9) | FDC-12-C (ø3 ~ ø12) | FDC-16-C (ø6 ~ ø16) | FDC-22-C (ø6 ~ ø22) | |
|---|---|---|---|---|---|---|
| ø3.0 | FDC-03007-C | FDC-03009-C | FDC-03012-C | FDC-06016-C | FDC-06022-C | |
| ø22.0 | FDC-07007-C | FDC-09009-C | FDC-12012-C | FDC-16016-C | FDC-22022-C | |
| Accuracy (4d Leading End) | AA (5µm) | 16,800 | 9,230 | 9,880 | 10,200 | 10,690 |
| A (10µm) | – | 7,930 | 8,740 | 9,390 | 9,880 | |
