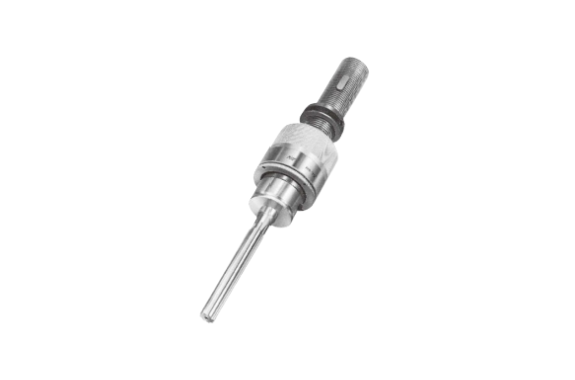

NT Tool Corporation FH-MT Series Floating Holder
Manufacturer: NT TOOL CORPORATION
Model: FH-MT Series
Feature
- For high precision reaming with special purpose machines and transfer lines.
Specifications

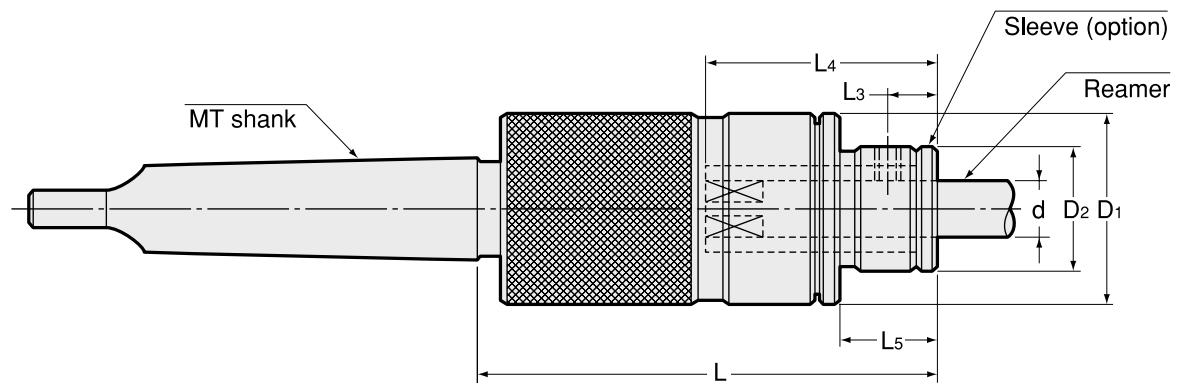

| Model | d Reamer shank | Sleeve size | Float | D1 | L | L3 | L5 | D2 | kg | |
|---|---|---|---|---|---|---|---|---|---|---|
| Radial | Angular | |||||||||
| FH0 -MT1 | 3.00 ～ 8.00 | FHS0 | 0.4 | 1° | 28 | 65 | 7 | 15 | 19.5 | 0.3 |
| FH0 -MT2 | 3.00 ～ 8.00 | FHS0 | 0.4 | 1° | 28 | 65 | 7 | 15 | 19.5 | 0.4 |
| FH1 -MT1 | 4.00 ～ 10.00 | FHS1 | 0 ～ 0.4 | 0 ～ 1° | 36 | 70 | 8 | 19 | 23 | 0.4 |
| FH1 -MT2 | 4.00 ～ 10.00 | FHS1 | 0 ～ 0.4 | 0 ～ 1° | 36 | 70 | 8 | 19 | 23 | 0.5 |
| FH2 -MT2 | 8.10 ～ 20.00 | FHS2 | 0 ～ 0.6 | 0 ～ 1° | 55 | 95 | 14 | 25 | 38 | 1.2 |
| FH2 -MT3 | 8.10 ～ 20.00 | FHS2 | 0 ～ 0.6 | 0 ～ 1° | 55 | 95 | 14 | 25 | 38 | 1.3 |
