NT TOOL CORPORATION
NT Tool Corporation FSC-MS Series High Precision Collet (For Semi-dry Machining / MQL)
Manufacturer: NT TOOL CORPORATION
Model: FSC-MS Series
Features
- Collet for tapping chucks.

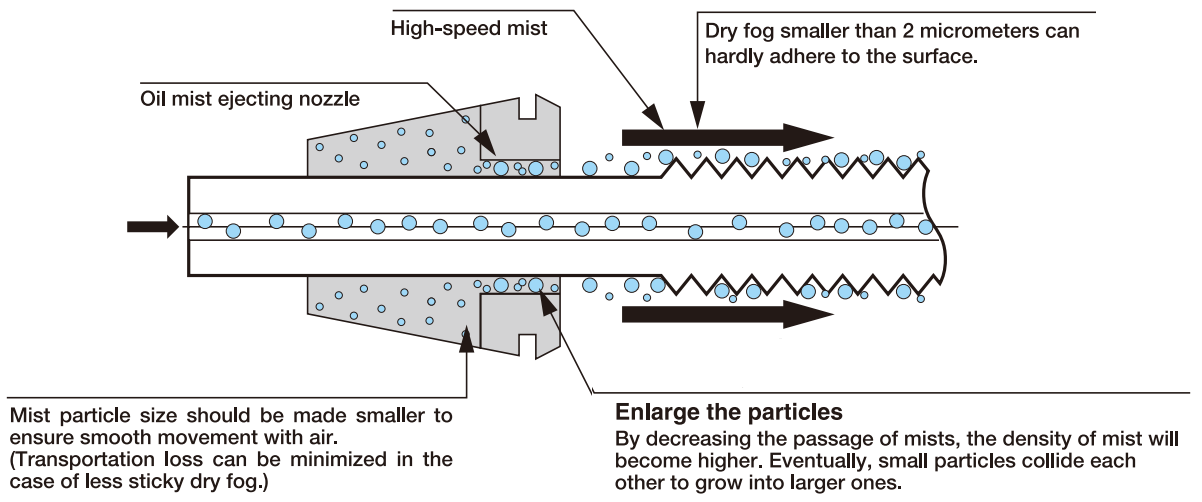

- Making lubricant adhere to the surface of workpiece and tool by spraying comparatively large particles alongside the tool.
Specifications
| Tool Shank Dia. | Model (FSC-MS) | |
|---|---|---|
| Size | Product Code | |
| ø5.0 | FSC-09-5.0-MS | 1336 00105009 |
| ø5.5 | FSC-09-5.5-MS | 1336 00105509 |
| ø6.0 | FSC-09-6.0-MS | 1336 00106009 |
| ø6.1 | FSC-09-6.1-MS | 1336 00106109 |
| ø6.2 | FSC-09-6.2-MS | 1336 00106209 |
| ø7.0 | FSC-09-7.0-MS | 1336 00107009 |
| ø8.0 | FSC-09-8.0-MS | 1336 00108009 |
| ø8.5 | FSC-09-8.5-MS | 1336 00108509 |
| ø9.0 | FSC-16-9.0-MS | 1336 00109016 |
| ø9.5 | FSC-16-9.5-MS | 1336 00109516 |
| ø10.0 | FSC-16-10.0-MS | 1336 00110116 |
| ø10.5 | FSC-16-10.5-MS | 1336 00110516 |
| ø11.0 | FSC-16-11.0-MS | 1336 00111016 |
