Manufacturer: NT TOOL CORPORATION
Model: GPK/GP Series
Feature
- For high precision reaming with special purpose machines and transfer lines.

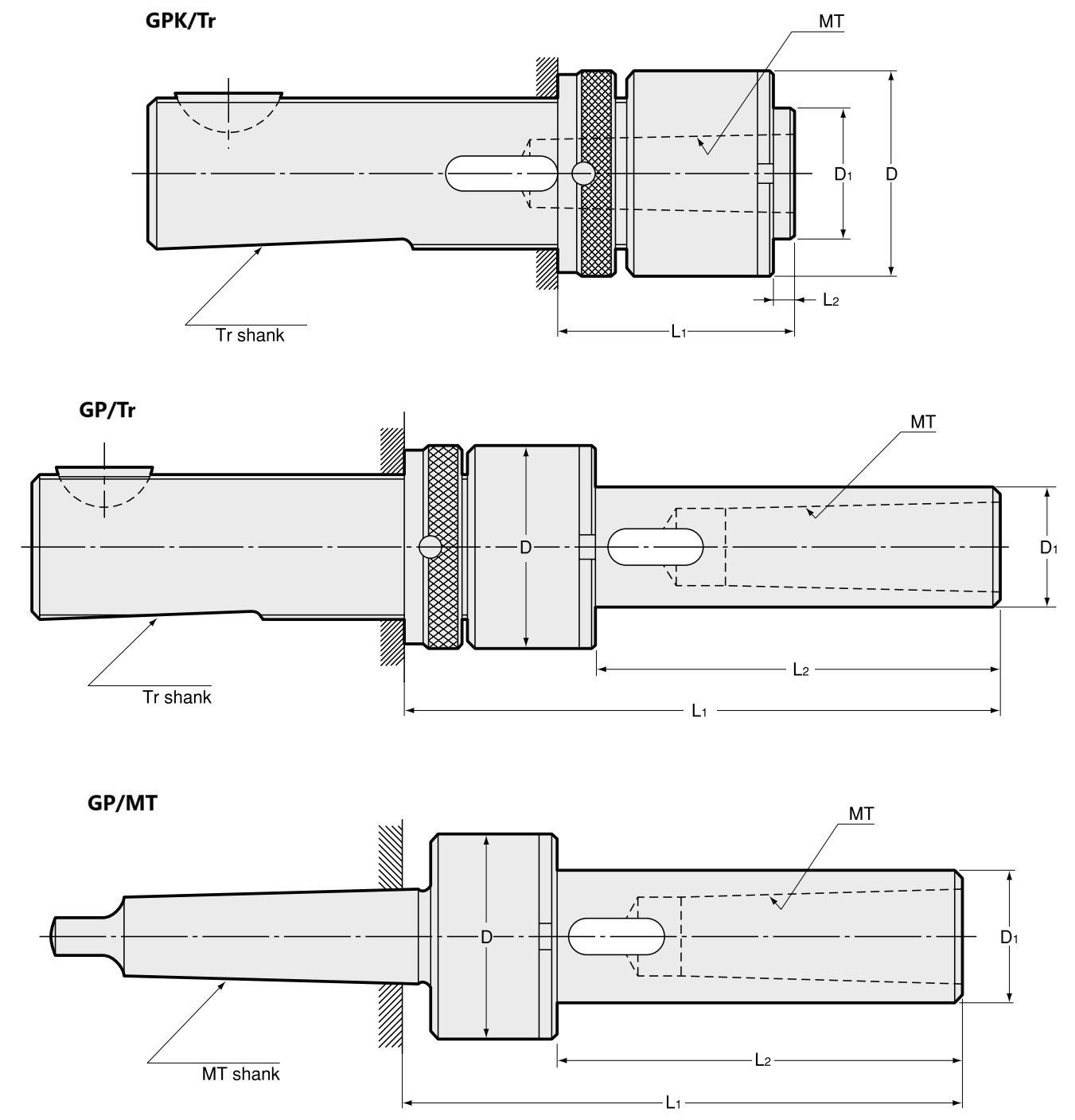

Specifications
| Model | Shank size | Radial float | D | D1 | L1 | L2 | kg |
|---|
| GPK1 /Tr28×2 | MT1 | 0.5 | 40 | 26 | 49 ～ 81 | 5 | 0.7 |
| GPK1 /Tr36×2 | MT1 | 0.5 | 40 | 26 | 51 ～ 90 | 5 | 1.1 |
| GPK2 /Tr28×2 | MT2 | 0.5 | 50 | 32 | 55 ～ 87 | 7 | 0.9 |
| GPK2 /Tr36×2 | MT2 | 1 | 50 | 32 | 55 ～ 94 | 5 | 1.3 |
| Model | Shank size | Radial float | D | D1 | L1 | L2 | kg |
|---|
| GP1 / Tr16×1.5 | MT1 | 0.5 | 32 | 18 | 112 ~ 142 | 74 | 0.4 |
| GP1 / Tr20×2 | MT1 | 0.5 | 32 | 18 | 112 ~ 142 | 74 | 0.5 |
| GP2 / Tr20×2 | MT2 | 0.5 | 40 | 26 | 132 ~ 162 | 88 | 0.7 |
| GP2 / Tr28×2 | MT2 | 0.5 | 40 | 26 | 132 ~ 164 | 88 | 0.9 |
| Model | Shank size | Radial float | D | D1 | L1 | L2 | kg |
|---|
| GP1 / MT1 | MT1 | 0.5 | 32 | 18 | 106 | 74 | 0.3 |
| GP1 / MT2 | MT1 | 0.5 | 32 | 18 | 107 | 74 | 0.4 |
| GP2 / MT2 | MT2 | 0.5 | 40 | 26 | 127 | 88 | 0.6 |
| GP2 / MT3 | MT2 | 0.5 | 40 | 26 | 127 | 88 | 0.7 |
