NT TOOL CORPORATION
NT Tool Corporation H/M Series Adjustable Adapter
Manufacturer: NT TOOL CORPORATION
Model: H/M Series
Specifications

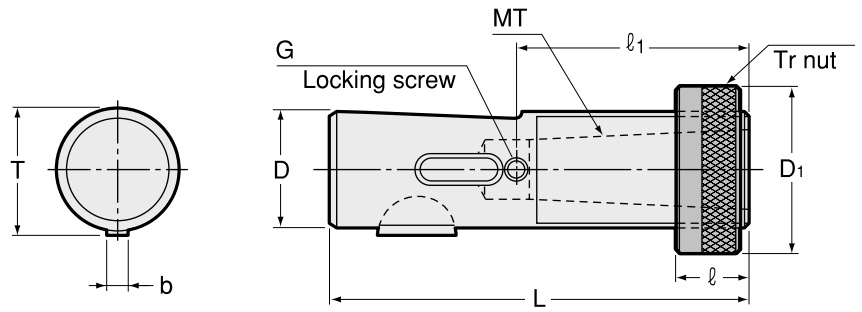

| Model | MT | D | D1 ± 0.2 | L | b | T | ℓ | ℓ1 | G | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| H -11810 /Tr18H | 1 | 18 | 32 | 102 | 4 | 19.5 | 12～52 | 48 | M6 P=1 | 0.17 |
| H -11811 /Tr18H | 1 | 18 | 32 | 112 | 4 | 19.5 | 12～62 | 48 | M6 P=1 | 0.19 |
| H -11812 /Tr18H | 1 | 18 | 32 | 122 | 4 | 19.5 | 12～72 | 48 | M6 P=1 | 0.21 |
| H -11813 /Tr18H | 1 | 18 | 32 | 132 | 4 | 19.5 | 12～82 | 48 | M6 P=1 | 0.23 |
| H -11814 /Tr18H | 1 | 18 | 32 | 142 | 4 | 19.5 | 12～92 | 48 | M6 P=1 | 0.24 |
| H -12610 /Tr26H | 1 | 26 | 40 | 102 | 5 | 27.5 | 12～52 | 48 | M6 P=1 | 0.40 |
| H -12611 /Tr26H | 1 | 26 | 40 | 112 | 5 | 27.5 | 12～62 | 48 | M6 P=1 | 0.43 |
| H -12612 /Tr26H | 1 | 26 | 40 | 122 | 5 | 27.5 | 12～72 | 48 | M6 P=1 | – |
| H -12613 /Tr26H | 1 | 26 | 40 | 132 | 5 | 27.5 | 12～82 | 48 | M6 P=1 | 0.51 |
| H -12614 /Tr26H | 1 | 26 | 40 | 142 | 5 | 27.5 | 12～92 | 48 | M6 P=1 | – |
