NT TOOL CORPORATION

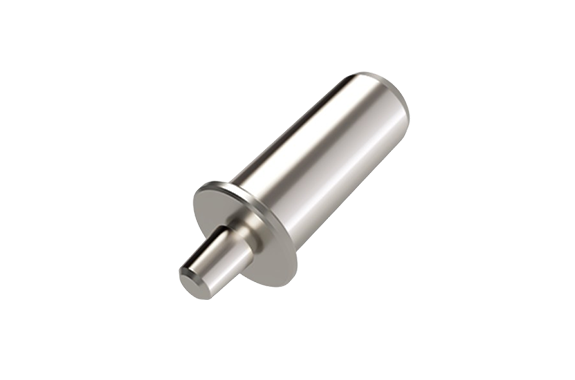

NT Tool Corporation JAB Series Jacobs Adapter
Manufacturer: NT TOOL CORPORATION
Model: JAB Series (JAB-16 / 20 / 25 / 32 / 42)

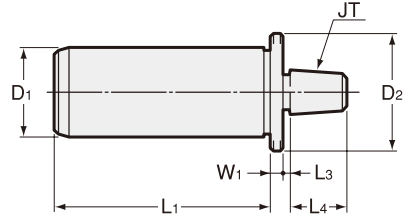

External Dimensions
| Code | Model | D1 | JT | L1 | D2 | W1 | L3 | L4 |
|---|---|---|---|---|---|---|---|---|
| 0711 03100162 | JAB 16 -JT2S | 16 | 2S | 60 | 19 | 3 | 3 | 18 |
| 0711 03100202 | JAB 20 -JT2S | 20 | 2S | 75 | 24 | 3 | 3 | 18 |
| 0711 03100206 | JAB 20 -JT6 | 20 | 6 | 75 | 24 | 3 | 4 | 24 |
| 0711 03100252 | JAB 25 -JT2S | 25 | 2S | 75 | 29 | 3 | 3 | 18 |
| 0711 03100256 | JAB 25 -JT6 | 25 | 6 | 75 | 29 | 3 | 4 | 24 |
| 0711 03100322 | JAB 32 -JT2S | 32 | 2S | 75 | 36 | 3 | 3 | 18 |
| 0711 03100326 | JAB 32 -JT6 | 32 | 6 | 75 | 36 | 3 | 4 | 24 |
| 0711 03100422 | JAB 42 -JT2S | 42 | 2S | 115 | 47 | 3 | 3 | 18 |
| 0711 03100426 | JAB 42 -JT6 | 42 | 6 | 115 | 47 | 3 | 4 | 24 |
