NT Tool Corporation MN5523･J Series Manual Flange
Manufacturer: NT TOOL CORPORATION
Model: MN5523･J Series
Specifications

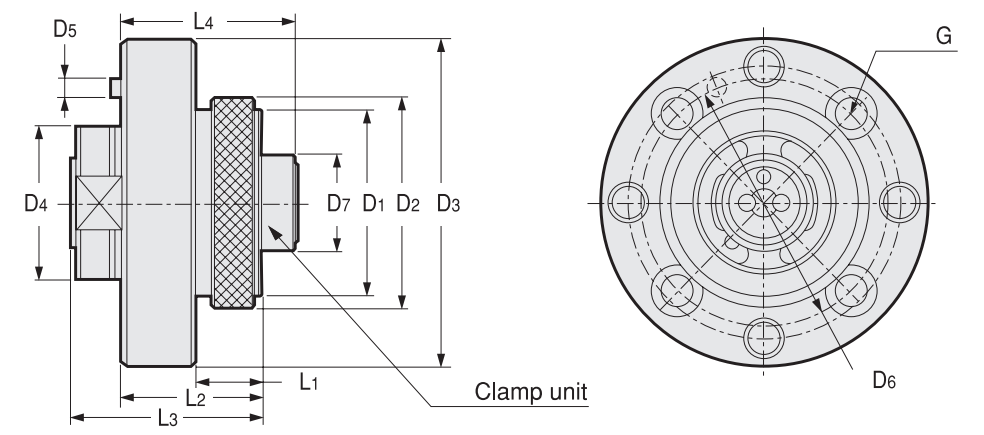

| Model | D1 | D2 | D3 | D4 g6 | D5 | D6 | D7 | L1 | L2 | L3 | L4 | G | Attached Clamp unit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MN5523 -05 -J | 32 | 37 | 60 | 30 | 3.5 | 44 | 16.6 | 13 | 26 | 36 | 33.6 | M5 | KS32-05 |
| MN5523 -06 -J | 40 | 45 | 70 | 35 | 4 | 53 | 20.6 | 15 | 30 | 41 | 37.6 | M6 | KS40-06 |
| MN5523 -07 -J | 50 | 55 | 80 | 40 | 4 | 63 | 25.6 | 18 | 35 | 46 | 44.6 | M6 | KS50-07 |
| MN5523 -08 -J | 63 | 70 | 100 | 50 | 4 | 79 | 33.6 | 22 | 43 | 55 | 52.6 | M8 | KS63-08 |
| MN5523 -09 -J | 80 | 87 | 117 | 60 | 5 | 96 | 41.6 | 29 | 50 | 63 | 62.1 | M8 | KS80-09 |
| MN5523 -10 -J | 100 | 110 | 140 | 80 | 5 | 119 | 52.6 | 42 | 70 | 83 | 82 | M10 | KS100-10 |
