NT TOOL CORPORATION
NT Tool Corporation N Series Adjustable Adapter
Manufacturer: NT TOOL CORPORATION
Model: N Series
Specifications

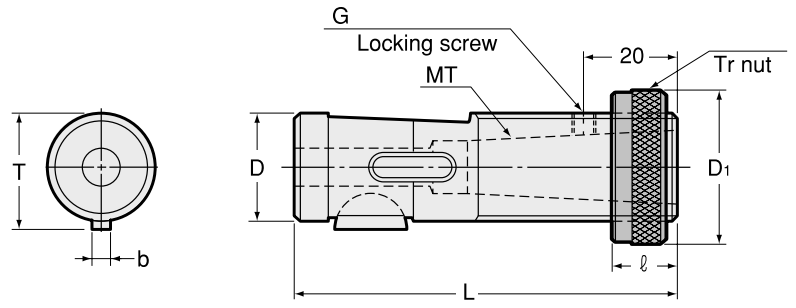

| Model | MT | D | D1 ± 0.2 | L | b | T ± 0.2 | ℓ | G | kg |
|---|---|---|---|---|---|---|---|---|---|
| N -1161 /Tr16N | 1 | 16 | 25 | 85 | 4 | 17.5 | 12～37 | M5 P=0.8 | 0.09 |
| N -1201 /Tr20N | 1 | 20 | 32 | 85 | 5 | 22 | 12～37 | M5 P=0.8 | 0.18 |
| N -1241 /Tr24N | 1 | 24 | 37 | 85 | 5 | 26 | 12～37 | M5 P=0.8 | 0.27 |
| N -1261 /Tr26N | 1 | 26 | 40 | 96 | 7 | 28.6 | 12～43 | M1 P=1.0 | 0.37 |
| N -1262 /Tr26N | 2 | 26 | 40 | 96 | 7 | 28.6 | 12～43 | M6 P=1.0 | 0.30 |
| N -1302 /Tr30N | 2 | 30 | 45 | 100 | 7 | 32.6 | 14～46 | M6 P=1.0 | 0.47 |
| N -1362 /Tr36N | 2 | 36 | 50 | 118 | 10 | 39.2 | 14～54 | M6 P=1.0 | 0.84 |
