Manufacturer: NT TOOL CORPORATION

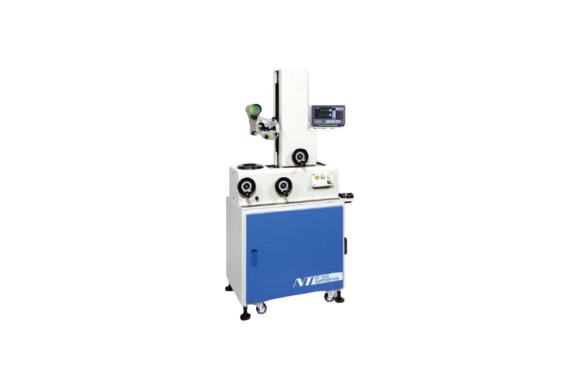

Model: NTP-300 / NTP-400 Series

Feature

• Projection type tool presetter for projection length and diameter measurement.
• NTP400 and NTP300A are available depending on measurement range.
• One presetter can measure various kinds of shanks with taper reduction parts.

External Dimensions

• (1) Digital display
• (2) Optical projector
• (3) X-axis handle
• (4) Z-axis handle
• (5) Control panel
• (6) Spinldle
• (7) Spindle turning handle
• (8) Spindle fixing knob
• ( 9 ) Air cylinder storage unit
• (10) Accessory storage unit
• (11) Dial gauge for X,Z-axis
• (12) Scale for X,Z-axis
• (13) Motor for X,Z-axis
• (14) Casters
• (15) Level bolts
• (16) Connecting unit
