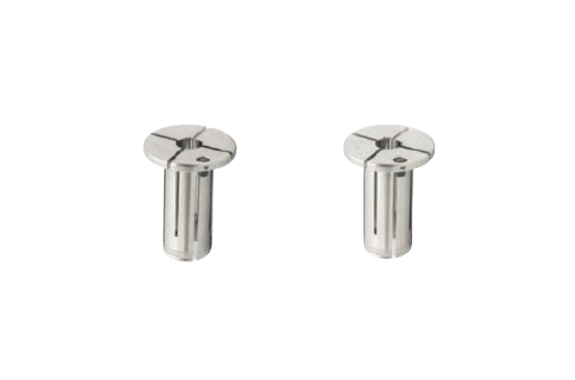

NT Tool Corporation PHS･H Series Collet With Stopper Pin
Manufacturer: NT TOOL CORPORATION
Model: PHS･H Series
Features
- Collet for Hydro Chuck Omega PHC-H.
- Using PHS collet with stopper pin protect iinner shank from damage/scratch.
Specifications
■ For cutter with oil hole

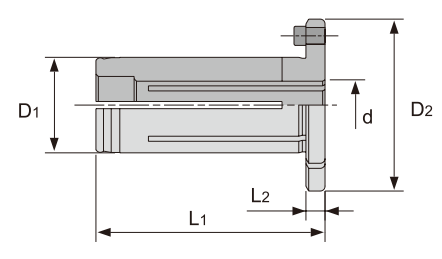

| Code | Model | D1 | D2 | L1 | L2 | d |
|---|---|---|---|---|---|---|
| 2584 300520 | PHS 20H – d – OH | 20 | 41 | 60 | 4 | 6, 8, 10, 12, 16 |
| 2584 300532 | PHS 32H – d – OH | 32 | 55 | 72 | 4 | 6, 8, 10, 12, 16, 20, 25 |
■ For collet through coolant
| Code | Model | D1 | D2 | L1 | L2 | d |
|---|---|---|---|---|---|---|
| 2584 300620 | PHS 20H – d – C | 20 | 41 | 60 | 4 | 6, 8, 10, 12, 16 |
| 2584 300632 | PHS 32H – d – C | 32 | 55 | 72 | 4 | 6, 8, 10, 12, 16, 20, 25 |
