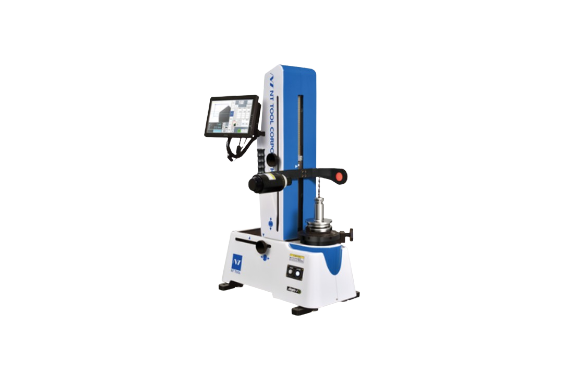

NT Tool Corporation SOTP Aegis-i Series Falcon
Manufacturer: NT TOOL CORPORATION
Model: SOTP
Feature
- Max Measurement
X-axis : φ300mm
Z-axis : 400mm - Contactless measurement does not damage cutting edges.
- Easy operation reduces human errors.
- Cutting tools in various shapes can be measured.
- Tightening of collet holder is possible on the presetter. ( Up to 60Nm )
Specifications

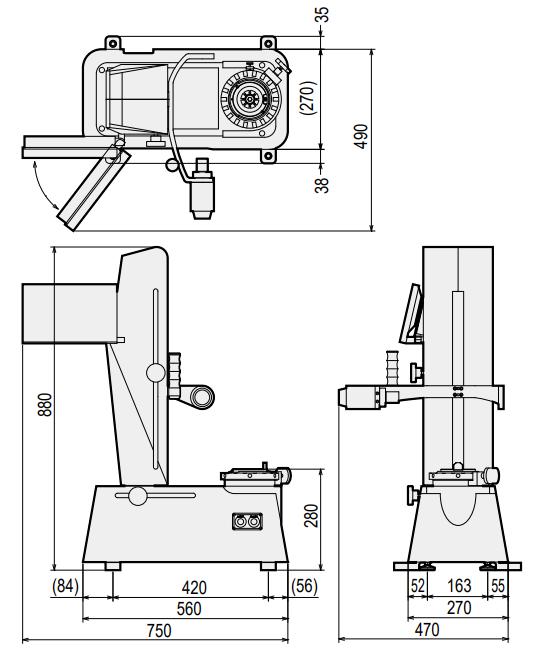

| External dimensions | 750x490x880(WxDxH) |
| Weight | 75kg |
| Power supply | 100~240V AC, 50/60Hz |
| Power consumption | 52W |
| Air pressure | 0.4~0.6MPa |
| Measurement | X-axis ø300mm, Z-axis 400mm *1 |
| Minimum reading | 0.001mm |
| Spindle size | BT50 (Adapters for different spindle sizes available.) |
| Clamp method | Mechanical clamp (2000N) |
| Specifications of camera | 0.33 million pixel CCD monochrome |
| Screen magnification ratio | 11.5× Magnification |
| Display size | 10.1″ |
| Cutting edge measurement range | 9.6 x 7.2 mm |
| Menu manipulation method | Touch panel |
| Language selection | English, Japanese, Korean, Chinese, Spanish |
| Accessories | Filter regulator, Cover |
| Spindle Rotation Method | Manual |
