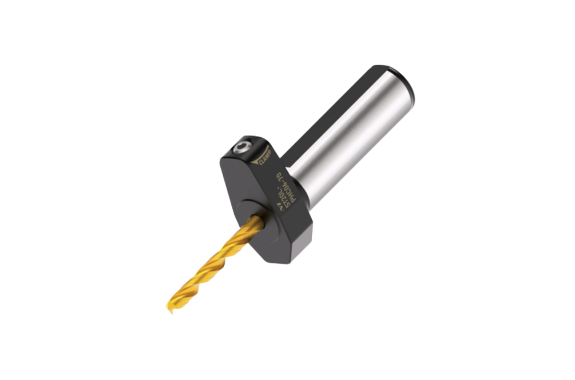

NT Tool Corporation ST･L-PHC Series Hydro Chuck For CNC Automatic Lathe
Manufacturer: NT TOOL CORPORATION
Model: ST･L-PHC Series
Feature
- Efficient tool changing in tight machine spaces.
- The flange makes it easy to set in the longitudinal direction.
- Holder projection is short and more open space.
- Easy to operate with only a hex wrench for setup

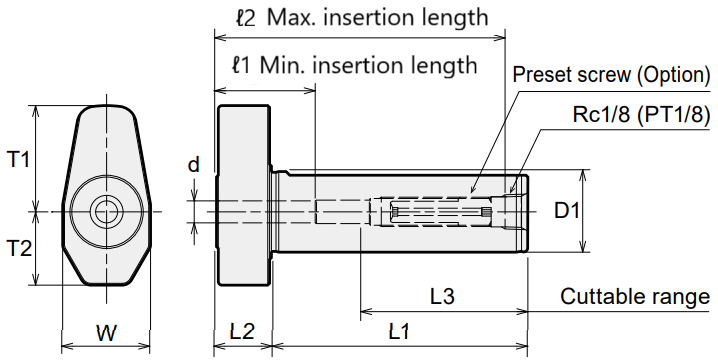

Specifications
| Model | Type | d | D1 | L1 | L2 | L3 | W | T1 | T2 | ℓ1 | ℓ2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| ST16L – PHC03 -50 | 1 | 3 | 16 | 50 | 15 | 10 | 22 | 23 | 17.5 | 16 | 58 |
| ST16L – PHC04 -50 | 1 | 4 | 16 | 50 | 15 | 10 | 22 | 23 | 17.5 | 19 | 58 |
| ST16L – PHC06 -50 | 1 | 6 | 16 | 50 | 15 | 10 | 22 | 23 | 17.5 | 25 | 58 |
| ST16L – PHC08 -50 | 2 | 8 | 16 | 50 | 15 | 10 | 24 | 25.5 | 19.5 | 27 | 47 |
| ST19.05L – PHC03 -60 | 1 | 3 | 19.05 | 60 | 15 | 20 | 22 | 23 | 17.5 | 16 | 68 |
| ST19.05L – PHC04 -60 | 1 | 4 | 19.05 | 60 | 15 | 20 | 22 | 23 | 17.5 | 19 | 68 |
