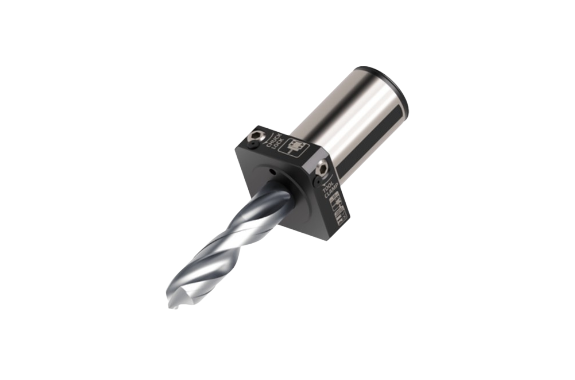

NT Tool Corporation ST･M-PHC Series Hydro Chuck For CNC Lathe
Manufacturer: NT TOOL CORPORATION
Model: ST･M-PHC Series
Feature
- High precision Hydro Chuck for CNC Lathe machines to improve machining quality + tool life.
Specifications

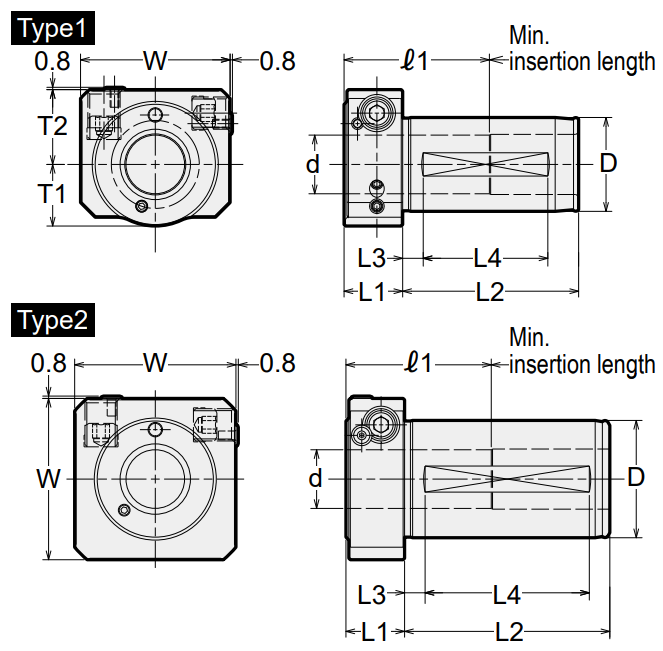

| Model | Type | d | D | L1 | L2 | L3 | L4 | W | ℓ1 | T1 | T2 | Hex Wrench Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST32M-PHC20 | 1 | 20 | 32 | 20 | 60 | 7 | 42.5 | 51 | 50 | 21 | 25.5 | 5mm |
| ST40M-PHC20 | 2 | 20 | 40 | 20 | 70 | 7 | 56 | 55 | 50 | — | — | 5mm |
