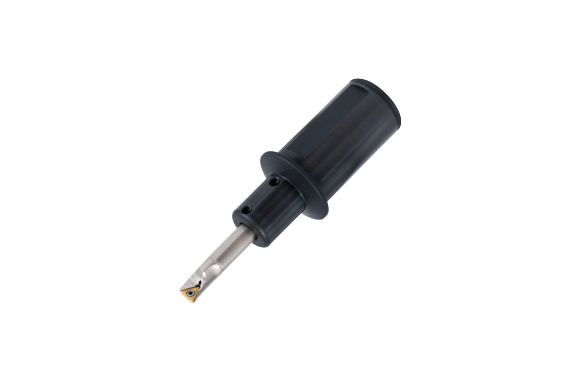

NT Tool Corporation ST･U-CBS Series For CNC Lathe Internal Coolant Bit Sleeves
Manufacturer: NT TOOL CORPORATION
Model: ST･U-CBS Series
Feature
- Prevents coolant leakage at boring bar flats on CNC lathes.
- No decrease in coolant pressure at cutting edge
- Improved surface finish accuracy
- Improved chip removal
Specifications

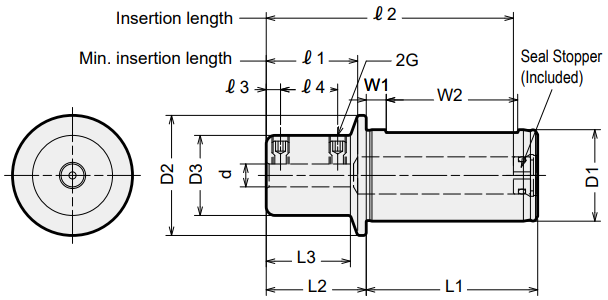

| Model | Type | d | D1 | D2 | D3 | L1 | L2 | L3 | ℓ1 | ℓ2 | ℓ3 | ℓ4 | W1 | W2 | G |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST25U – CBS08 | 1 | 8 | 25 | 34 | 28 | 56 | 35 | 30.9 | 32 | 82 | 5 | 20 | 7 | 42 | M6 |
| ST25U – CBS10 | 1 | 10 | 25 | 34 | 28 | 56 | 35 | 30.9 | 32 | 82 | 5 | 20 | 7 | 42 | M6 |
| ST25U – CBS12 | 1 | 12 | 25 | 34 | 28 | 56 | 35 | 30.9 | 36 | 82 | 5 | 20 | 7 | 42 | M6 |
| ST25U – CBS16 | 2 | 16 | 25 | 34 | — | 56 | 45 | — | 35 | 92 | 5 | 25 | 7 | 42 | M6 |
| ST32U – CBS08 | 1 | 8 | 32 | 42 | 28 | 60 | 35 | 29.5 | 32 | 86 | 5 | 20 | 7 | 46 | M6 |
| ST32U – CBS10 | 1 | 10 | 32 | 42 | 28 | 60 | 35 | 29.5 | 32 | 86 | 5 | 20 | 7 | 46 | M6 |
| ST32U – CBS12 | 1 | 12 | 32 | 42 | 28 | 60 | 35 | 29.5 | 36 | 86 | 5 | 20 | 7 | 46 | M6 |
