NT TOOL CORPORATION
NT Tool Corporation T Series Adjustable Adapter
Manufacturer: NT TOOL CORPORATION
Model: T Series
Specifications

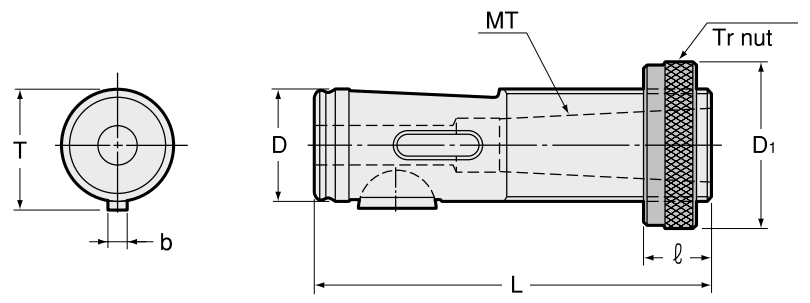

| Model | MT | D | D1 ± 0.2 | L | b | T ± 0.2 | ℓ | kg |
|---|---|---|---|---|---|---|---|---|
| T -1×16 /Tr16×2 | 1 | 16 | 25 | 80 | 3 | 17 | 12～35 | 0.08 |
| T -1×19 /Tr19 | 1 | 19 | 32 | 80 | 5 | 21 | 12～35 | 0.15 |
| T -1×22 /Tr22 | 1 | 22 | 32 | 92 | 5 | 24 | 12～40 | 0.23 |
| T -2×22 /Tr22 | 2 | 22 | 32 | 92 | 5 | 24 | 12～40 | 0.15 |
| T -1×26 /Tr26 | 1 | 26 | 40 | 102 | 5 | 28 | 12～45 | 0.39 |
| T -2×26 /Tr26 | 2 | 26 | 40 | 102 | 5 | 28 | 12～45 | 0.31 |
| T -3×35 /Tr35 | 3 | 35 | 50 | 122 | 7 | 38 | 14～52 | 0.66 |
| T -4×48 /Tr48 | 4 | 48 | 67 | 152 | 7 | 51 | 18～62 | 1.61 |
