NT Tool Corporation WEC/WERC Series Quick Change Tap Adapter
Manufacturer: NT TOOL CORPORATION
Model: WEC/WERC Series
Features
- All tapping jobs by using carbide taps
- Tap shank is firmly clamped by collet.
Specifications

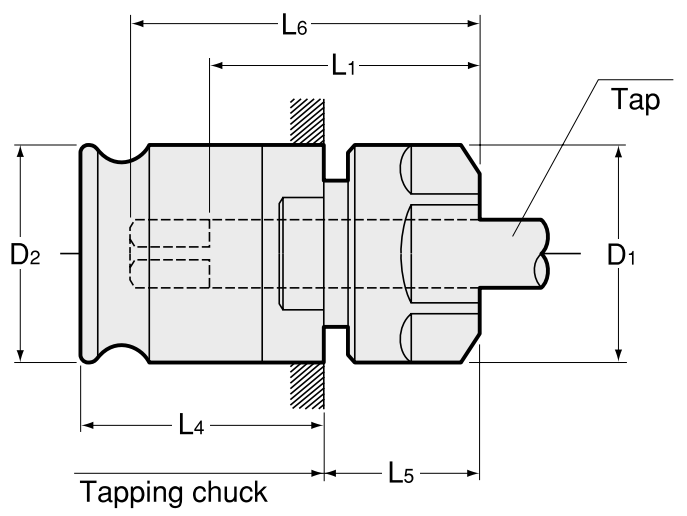

| Model | Tap Size | Chuck Size | D1 | D2 | L1 | L4 | L5 | Spanner | Recommended Clamping Torque (N·m) | kg |
|---|---|---|---|---|---|---|---|---|---|---|
| WEC0 | M3～M8 (M10) U1/4～U5/16 (U3/8) | 0 | 19 | 13 | 21.5 | 19.5 | 13.5 | Flat 17mm width | 15～20 | 0.1 |
| WEC1 | M4～M10 U1/4～U3/8 | 1 32 | 19 | 19 | 23.5 | 21.5 | 13.5 | Flat 17mm width | 15～20 | 0.1 |
| WEC1 | M11～M12 U7/16～U1/2 Pipe(PT,PS,PF)1/8 | 1 32 | 26 | 19 | 25 | 21.5 | 15 | S-0 | 30～35 | 0.1 |
| WEC2 | M12 | 2 | 26 | 31 | 34 | 15 | 15 | S-0 | 30～35 | 0.3 |
| WEC2 | M14～M20 U9/16～U3/4 | 2 | 34 | 31 | 35 | 16 | 15 | FK-0034 | 40～45 | 0.3 |
| WERC2 | M7～M12 U3/8～U1/2 Pipe(PT,PS,PF)1/8 | 2 | 26 | 31 | (26) | 15 | 15 | S-0 | 30～35 | 0.3 |
| WERC2 | M14～M16 U9/16 | 2 | 34 | 31 | (29) | 20.5 | 15 | FK-0034 | 40～45 | 0.3 |
