NT Tool Corporation WEN･B/WENR･B Series Quick Change Tap Adapter
Manufacturer: NT TOOL CORPORATION
Model: WEN･B/WENR･B Series
Features
- For through hole, blind hole, right-hand thread and lefthand thread.
- Quick Change
- Length adjustment facilitates the depth control of reground tap.
Specifications

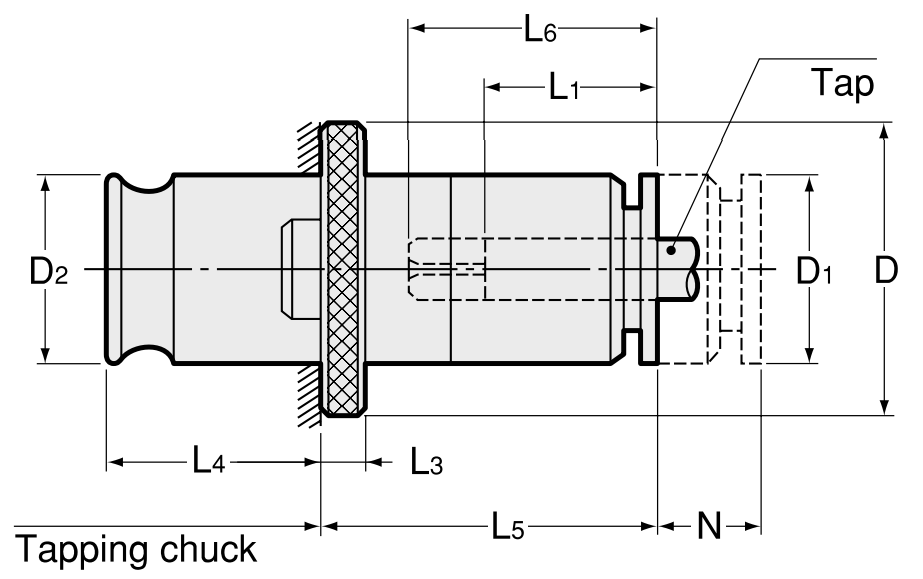

| Model | Tap Size | Chuck size | Adjustable length (N) | D | D1 | D2 | L1 | L3 | L4 | L5 | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WEN0B | M3 ～ M8 (M10) U1/4 ～ U5/16（U3/8） | 0 | 8 | 22 | 13 | 13 | 15 | 4 | 19.5 | 28 | 0.05 |
| WEN1B | M3 ～ M12（M15） U1/4 ～ U7/16（U9/16） Pipe(PT,PS,PF)1/8 ～ 1/4 | 1 32 | 10 | 30 | 19 | 19 | 17 | 4 | 21.5 | 33 | 0.2 |
| WEN40B | M6 ～ M18 U1/4 ～ U3/4 | 40 | 15 | 40 | 25 | 26 | 30 | 5 | 32 | 53 | 0.4 |
| WEN2B | M8 ～ M22 U3/8 ～ U7/8 | 2 | 15 | 48 | 30 | 31 | 30 | 5 | 35 | 59 | 0.5 |
| WEN3B | M26 ～ M38 U1 ～ U1 3/8 | 3 | 25 | 70 | 48 | 48 | 44 | 6 | 55.5 | 82.5 | 1.8 |
| WENR2B | M11 ～ M16 U7/16 ～ U5/8 Pipe(PT,PS,PF)1/8 ～ 1/2 | 2 | 15 | 48 | 30 | 31 | (20) | 5 | 35 | 59 | 0.5 |
| WENR3B | M16 ～ M38 U3/4 ～ U1 3/8 Pipe(PT,PS,PF)1/4 ～ 1 1/8 | 3 | 25 | 70 | 48 | 48 | (22) | 6 | 55.5 | 83 | 1.8 |
| WENR4B | M22 ～ M48 U7/8 ～ U1 3/4 Pipe(PT,PS,PF)3/4 ～ 1 1/2 | 4 | 40 | 92 | 60 | 60 | (33) | 13 | 63 | 133 | 3.1 |
