NT TOOL CORPORATION
NT Tool Corporation WENE･B/WENER･B Series Quick Change Tap Adapter
Manufacturer: NT TOOL CORPORATION
Model: WENE･B/WENER･B Series
Features
- Quick change
- Extend size designed for tap adapters 0, 1 and 2 to accept the oversized taps.
- Length adjustment facilitates your depth control of re-ground tap.

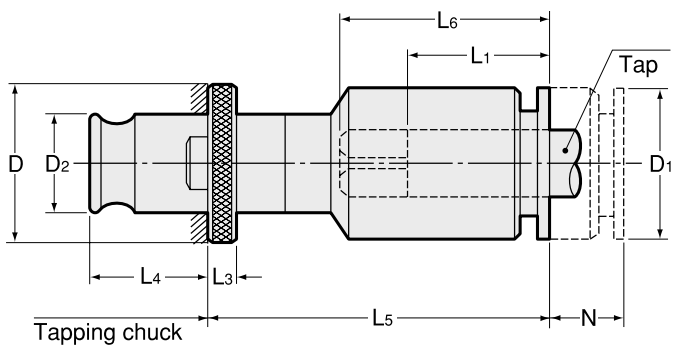

Specifications
| Model | Tap Size | Chuck Size | Adjustable Length (N) | D | D1 | D2 | L1 | L3 | L4 | L5 | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WENE0B | M8 ~ M12 U3/8 ~ U7/16 Pipe(PT,PS,PF)1/8 | 0 | 8 | 22 | 19 | 13 | 17 | 4 | 19.5 | 48 | 0.07 |
| WENE1B | M12 ~ M16 U1/2 ~ U5/8 Pipe(PT,PS,PF)1/4 ~ 3/8 | 1 32 | 10 | 30 | 30 | 19 | 30 | 4 | 21.5 | 65 | 0.14 |
| WENER2B | M24 ~ M28 U1 Pipe(PT,PS,PF)1/2 | 2 | 15 | 48 | 48 | 31 | (29) | 5 | 35 | 101 | 0.66 |
