NT Tool Corporation WESNE･B/WESNER･B Series Quick Change Tap Adapter
Manufacturer: NT TOOL CORPORATION
Model: WESNE･B/WESNER･B Series
Features
- Quick change
- Extend size designed for tap adapters 0, 1 and 2 to accept the oversized taps.
- Length adjustment facilitates your depth control of re-ground tap.
- Safety torque clutch actuates to prevent tap breakage when an excessive torque is applied to tap.
Specifications

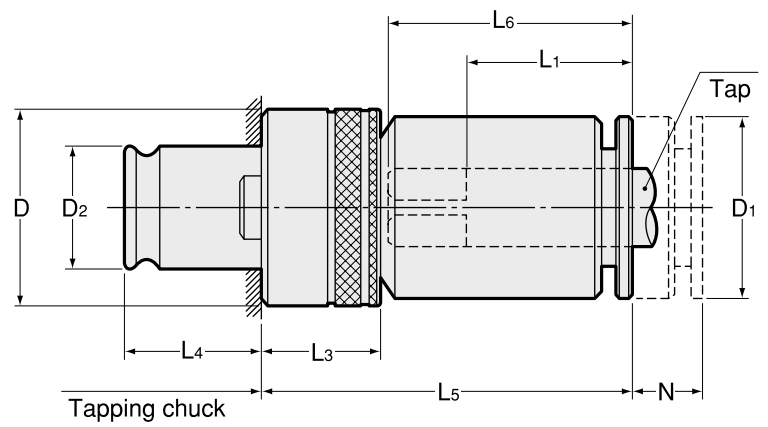

| Model | Tap Size | Chuck size | Adjustable length (N) | D | D1 | D2 | L1 | L3 | L4 | L5 | kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| WESNE0B | M8 ～ M12 U3/8 ～ U7/16 Pipe(PT,PS,PF)1/8 | 0 | 8 | 23 | 19 | 13 | 17 | 20 | 19.5 | 48 | 0.1 |
| WESNE1B | M12 ～ M16 U1/2 ～ U5/8 Pipe(PT,PS,PF)1/4 ～ 3/8 | 1 32 | 10 | 32 | 30 | 19 | 30 | 25 | 21.5 | 65 | 0.4 |
| WESNER2B | M24 ～ M28 U1 Pipe(PT,PS,PF)1/2 | 2 | 15 | 50 | 48 | 31 | (29) | 31 | 35 | 101 | 1.3 |
