NT Tool Corporation WF/MT Series Quick Change Tapping Chuck
Manufacturer: NT TOOL CORPORATION
Model: WF/MT Series
Features
- Small diameter tapping chuck.
- Tapping is possible in combination with tap adapte. Tap adapter is quick-changeable.
Specifications

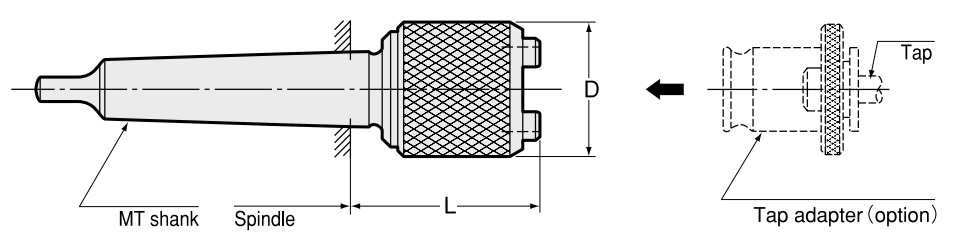

| Model | Tap Size | Adapter Size | D | L | kg |
|---|---|---|---|---|---|
| WF0/MT1 | M3 ~ M8 (M10) U1/4 ~ U5/16 (U3/8) | 0 | 23 | 39 | 0.2 |
| WF1/MT2 | M3 ~ M12 (M15) U1/4 ~ U7/16 (U9/16) Pipe (PT, PS, PF) 1/8 ~ 1/4 | 1 | 32 | 44 | 0.3 |
| WF2/MT3 | M8 ~ M22 U3/8 ~ U7/8 Pipe (PT, PS, PF) 1/8 ~ 1/2 | 2 | 50 | 61 | 0.8 |
| WF3/MT4 | M16 ~ M38 U5/8 ~ U1 3/8 Pipe (PT, PS, PF) 1/4 ~ 1 1/8 | 3 | 72 | 91 | 2.2 |
